IKFW50N60DH3E IGBT

📥 Download Datasheet Datasheet Preview Page 1

Description

IKFW50N60DH3E TRENCHSTOPTM Advanced Isolation High speed switching series third generation IGBT copacked with Rapid 1 fast and soft antiparallel di.

📥 Download Datasheet

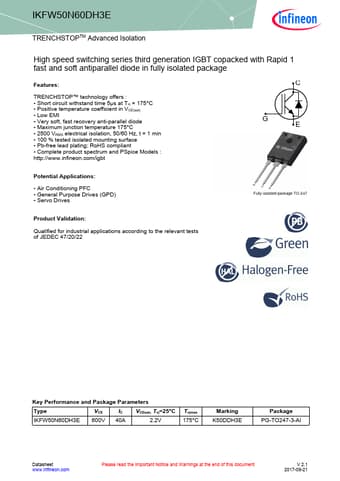

Preview of IKFW50N60DH3E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* C TRENCHSTOP™ technology offers :
* Short circuit withstand time 5µs at Tvj = 175°C
* Positive temperature coefficient in VCE(sat)
* Low EMI
* Very soft, fast recovery anti-parallel diode
* Maximum junction temperature 175°C
* 2500 VRMS electrical i

Applications

* Air Conditioning PFC
* General Purpose Drives (GPD)
* Servo Drives Fully isolated package TO-247 Product Validation: Qualified for industrial applications according to the relevant tests of JEDEC 47/20/22 Key Performance and Package Parameters Type VCE IC VCEsat, Tv
