IGC77T75E12RDA - EDT2 IGBT

Infineon

📥 Download Datasheet

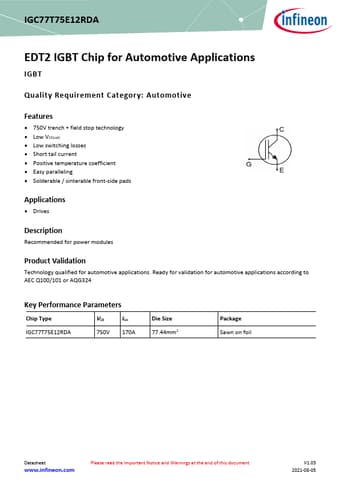

IGC77T75E12RDA Datasheet Preview — Preview of IGC77T75E12RDA PDF

Datasheet Details

Part number	IGC77T75E12RDA
Manufacturer	Infineon
File Size	352.21 KB
Description	EDT2 IGBT
Datasheet	IGC77T75E12RDA-Infineon.pdf

IGC77T75E12RDA Product details

Description

Recommended for power modules Product Validation Technology qualified for automotive applications.Ready for validation for automotive applications according to AEC Q100/101 or AQG324 Key Performance Parameters Chip Type VCE ICn IGC77T75E12RDA 750V 170A Die Size 77.44mm2 Package Sawn on foil Datasheet www.infineon.com Please read the Important Notice and Warnings at the end of this document V1.03 2021-08-05 EDT2 IGBT Chip for Automotive Applications IGC77T75E12RDA Table of Contents

Features

750V trench + field stop technology.
Low VCE(sat).
Low switching losses.
Short tail current.
Positive temperature coefficient.
Easy paralleling.
Solderable / sinterable front-side pads.
