IAUT300N08S5N012 Power Transistor

IAUT300N08S5N012 Description

IAUT300N08S5N012 OptiMOS™-5 Power-Transistor .

IAUT300N08S5N012 Features

* N-channel - Enhancement mode
* AEC qualified
* MSL1 up to 260°C peak reflow
* 175°C operating temperature
* Green product (RoHS compliant)
* Ultra low Rds(on)
* 100% Avalanche tested Product Summary VDS RDS(on) ID 80 V 1.2 mW 300 A PG-HSOF

📥 Download Datasheet

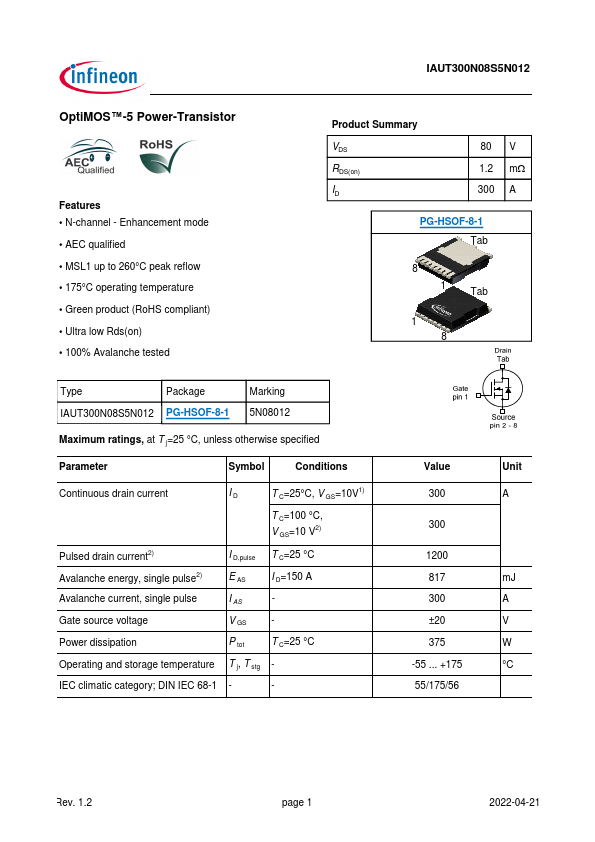

Preview of IAUT300N08S5N012 PDF

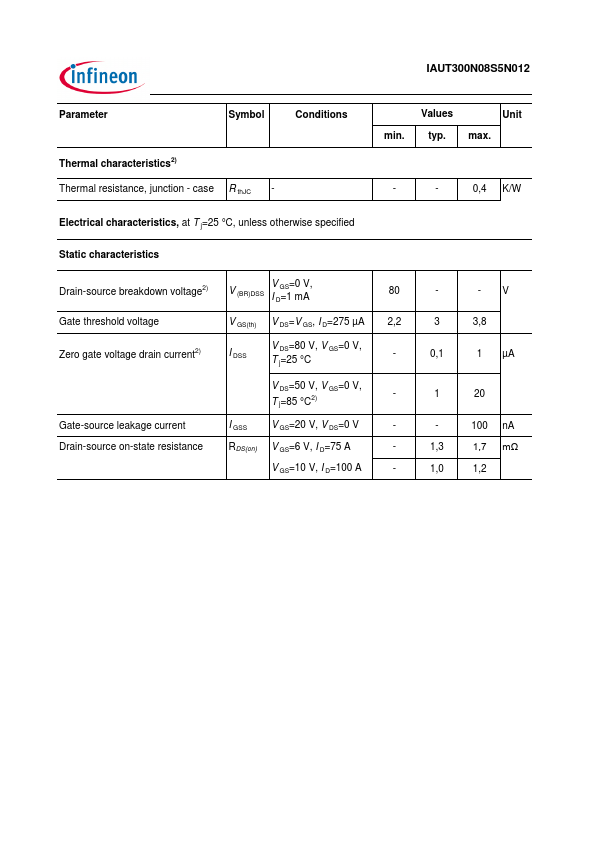

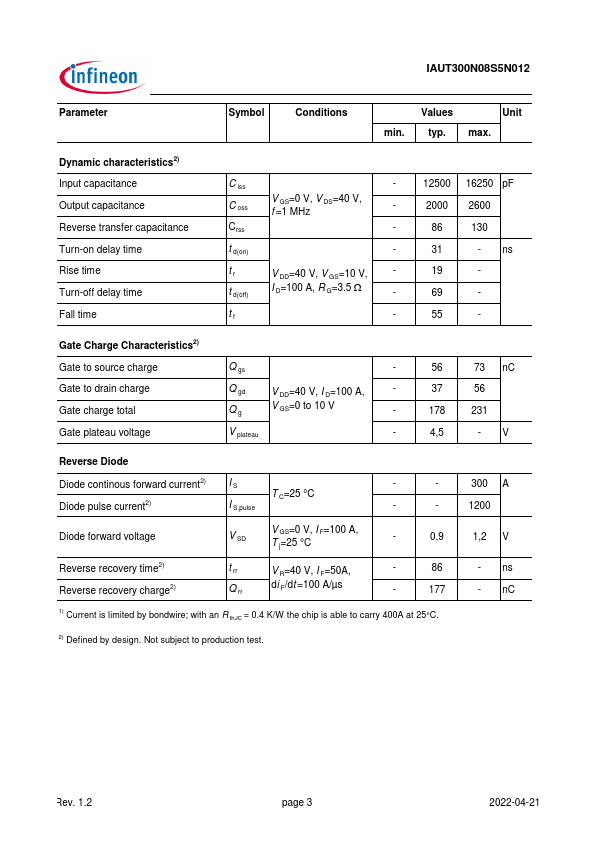

datasheet Preview Page 2 datasheet Preview Page 3
