IAUCN04S6N009T - Automotive MOSFET

Description

.

.

.

.

Features

  • OptiMOS™ power MOSFET for automotive.

📥 Download Datasheet

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

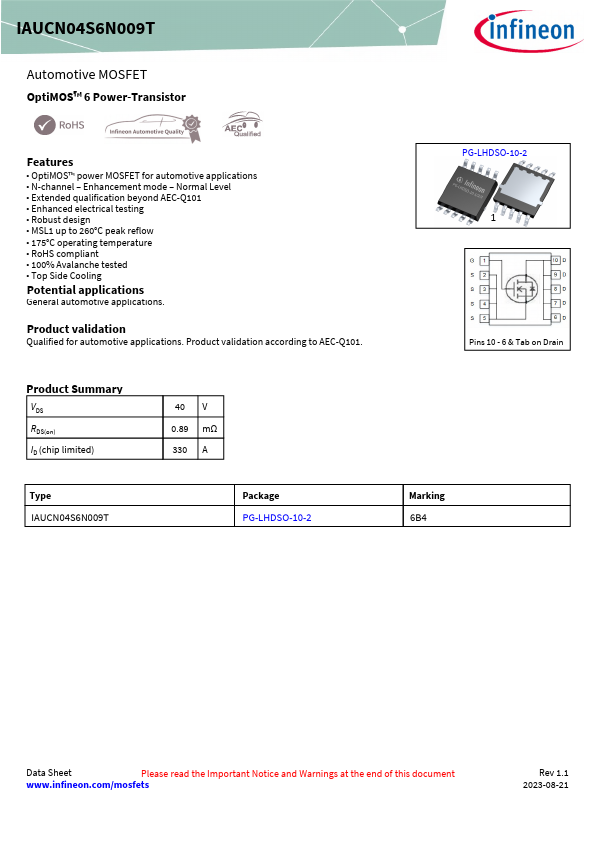

IAUCN04S6N009T Automotive MOSFET OptiMOS™ 6 Power-Transistor Features • OptiMOS™ power MOSFET for automotive applications • N-channel – Enhancement mode – Normal Level • Extended qualification beyond AEC-Q101 • Enhanced electrical testing • Robust design • MSL1 up to 260°C peak reflow • 175°C operating temperature • RoHS compliant • 100% Avalanche tested • Top Side Cooling Potential applications General automotive applications. Product validation Qualified for automotive applications. Product validation according to AEC-Q101. Product Summary VDS RDS(on) ID (chip limited) Type IAUCN04S6N009T 40 V 0.89 mΩ 330 A Package PG-LHDSO-10-2 PG-LHDSO-10-2 1 Pins 10 - 6 & Tab on Drain Marking 6B4 Data Sheet Please read the Important Notice and Warnings at the end of this document www.infineon.
