FZ1000R33HE3 - IGBT

Infineon

📥 Download Datasheet

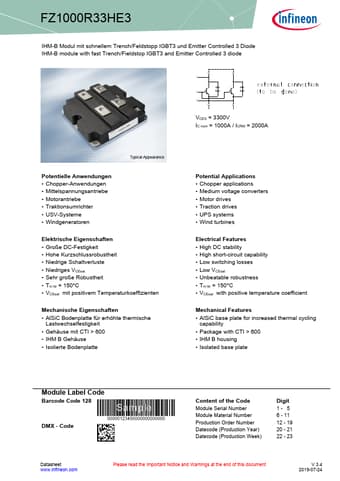

FZ1000R33HE3 Datasheet Preview — Preview of FZ1000R33HE3 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FZ1000R33HE3
Manufacturer	Infineon
File Size	510.41 KB
Description	IGBT
Datasheet	FZ1000R33HE3-Infineon.pdf

FZ1000R33HE3 Product details

Features

High DC stability.
High short-circuit capability.
Low switching losses.
Low VCEsat.
Unbeatable robustness.
Tvj op = 150°C.
VCEsat with positive temperature coefficient Mechanical Features.
AlSiC base plate for increased thermal cycling capability.
Package with CTI > 600.
IHM B housing.
Isolated base plate Module Label Code Barcode Code 128 DMX - Code Content of the Code Module Serial Number Mod.
