FS50R06W1E3 - IGBT

Features

  • Low Switching Losses.
  • Trench IGBT 3.
  • VCEsat with positive Temperature Coefficient.
  • Low VCEsat Mechanical Features.
  • Al2O3 Substrate with Low Thermal Resistance.
  • Compact design.
  • Solder Contact Technology.
  • Rugged mounting due to integrated mounting clamps Module Label Code Barcode Code 128 DMX - Code prepared by: DK approved by: MB Content of the Code Module Serial Number Module Material Number Production Order Number Datec.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FS50R06YL4 IGBT-Module eupec GmbH
FS50R12KE3 IGBT-Module eupec GmbH
FS50R12KT3 IGBT-Module eupec GmbH
FS50 LINEAR HALL-EFFECT SENSORS Feeling Technology
FS50AS-03 N-Channel Power MOSFET Mitsubishi Electric Semiconductor

Other Datasheets by Infineon

Part Number Description
FS50R06W1E3_B11 IGBT
FS50R12KT3 IGBT
FS50R12KT4P_B11 IGBT
FS50R12KT4_B11 IGBT-Module
FS50R12KT4_B15 IGBT-Module

Full PDF Text Transcription

Click to expand full text

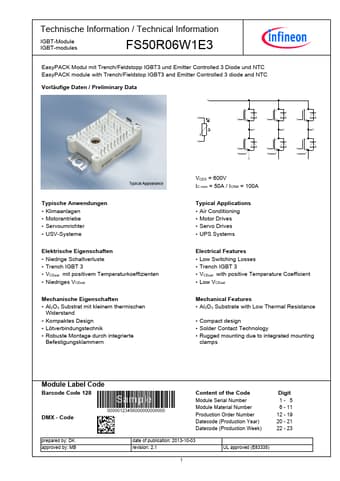

TechnischeInformation/TechnicalInformation IGBT-Module IGBT-modules FS50R06W1E3 EasyPACKModulmitTrench/FeldstoppIGBT3undEmitterControlled3DiodeundNTC EasyPACKmodulewithTrench/FieldstopIGBT3andEmitterControlled3diodeandNTC VorläufigeDaten/PreliminaryData J TypischeAnwendungen • Klimaanlagen • Motorantriebe • Servoumrichter • USV-Systeme ElektrischeEigenschaften • NiedrigeSchaltverluste • TrenchIGBT3 • VCEsatmitpositivemTemperaturkoeffizienten • NiedrigesVCEsat MechanischeEigenschaften • Al2O3 Substrat mit kleinem thermischen Widerstand • KompaktesDesign • Lötverbindungstechnik • Robuste Montage durch integrierte Befestigungsklammern VCES = 600V IC nom = 50A / ICRM = 100A TypicalApplications • AirConditioning • MotorDrives • ServoDrives • U
