FF600R12KT4 - 62mm C-Series module

Name: FF600R12KT4
SKU: FF600R12KT4-1578657

Infineon

📥 Download Datasheet

FF600R12KT4 Datasheet Preview — Preview of FF600R12KT4 PDF

Datasheet Details

Part number	FF600R12KT4
Manufacturer	Infineon
File Size	488.53 KB
Description	62mm C-Series module
Datasheet	FF600R12KT4-Infineon.pdf

FF600R12KT4 Product details

Description

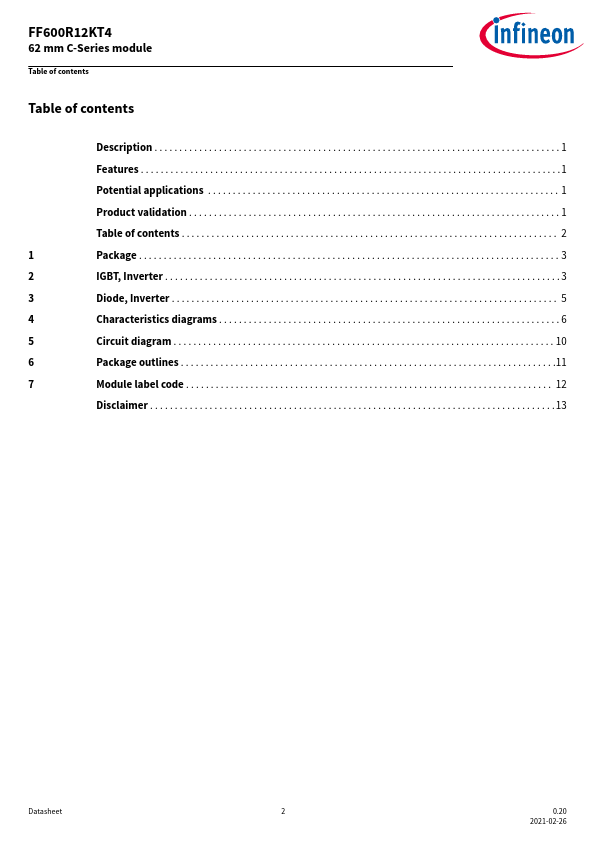

Datasheet www.infineon.com Please read the Important Notice and Warnings at the end of this document 0.20 2021-02-26 FF600R12KT4 62 mm C-Series module Table of contents Table of contents Description .

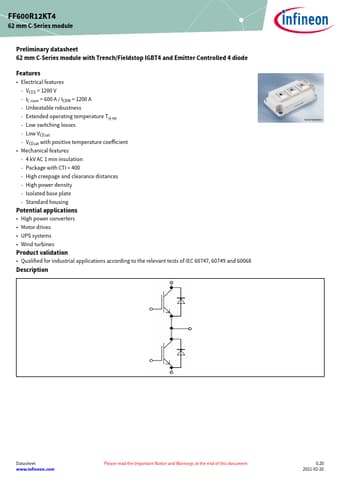

Features

Electrical features - VCES = 1200 V - IC nom = 600 A / ICRM = 1200 A - Unbeatable robustness - Extended operating temperature Tvj op - Low switching losses - Low VCEsat - VCEsat with positive temperature coefficient.
Mechanical features - 4 kV AC 1 min insulation - Package with CTI > 400 - High creepage and clearance distances - High power density - Isolated base plate - Standard housing Potential.
