FF600R12IP4 - IGBT

Features

  • High short-circuit capability.
  • High surge current capability.
  • High current density.
  • Tvj op = 150°C.
  • VCEsat with positive temperature coefficient Mechanical Features.
  • 4 kV AC 1min insulation.
  • Package with CTI > 400.
  • High creepage and clearance distances.
  • Integrated NTC temperature sensor.
  • RoHS compliant Module Label Code Barcode Code 128 DMX - Code Content of the Code Module Serial Number Module Material.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FF600R12KE3 IGBT-Modules eupec GmbH
FF600R16KF4 IGBT eupec GmbH
FF60UA60DN fast Recovery Rectifier INCHANGE
FF6S Surface Mount Glass Passivated Fast Recovery Rectifier GOOD-ARK

Other Datasheets by Infineon

Part Number Description
FF600R12IP4V IGBT
FF600R12IE4 IGBT
FF600R12IE4V IGBT
FF600R12IS4F IGBT-Module
FF600R12KE4 IGBT

Full PDF Text Transcription

Click to expand full text

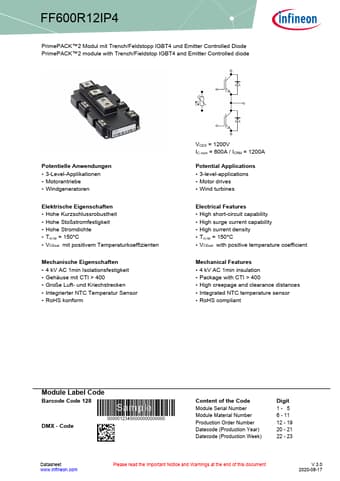

FF600R12IP4 PrimePACK™2ModulmitTrench/FeldstoppIGBT4undEmitterControlledDiode PrimePACK™2modulewithTrench/FieldstopIGBT4andEmitterControlleddiode PotentielleAnwendungen • 3-Level-Applikationen • Motorantriebe • Windgeneratoren ElektrischeEigenschaften • HoheKurzschlussrobustheit • HoheStoßstromfestigkeit • HoheStromdichte • Tvjop=150°C • VCEsatmitpositivemTemperaturkoeffizienten MechanischeEigenschaften • 4kVAC1minIsolationsfestigkeit • GehäusemitCTI>400 • GroßeLuft-undKriechstrecken • IntegrierterNTCTemperaturSensor • RoHSkonform VCES = 1200V IC nom = 600A / ICRM = 1200A PotentialApplications • 3-level-applications • Motordrives • Windturbines ElectricalFeatures • Highshort-circuitcapability • Highsurgecurrentcapability • Highcurrent
