FF2MR12W3M1H_B11 - EasyPACK module

Name: FF2MR12W3M1H_B11
SKU: FF2MR12W3M1H_B11-1578542

Infineon

📥 Download Datasheet

FF2MR12W3M1H_B11 Datasheet Preview — Preview of FF2MR12W3M1H_B11 PDF

Datasheet Details

Part number	FF2MR12W3M1H_B11
Manufacturer	Infineon
File Size	1.17 MB
Description	EasyPACK module
Datasheet	FF2MR12W3M1H_B11-Infineon.pdf

FF2MR12W3M1H_B11 Product details

Description

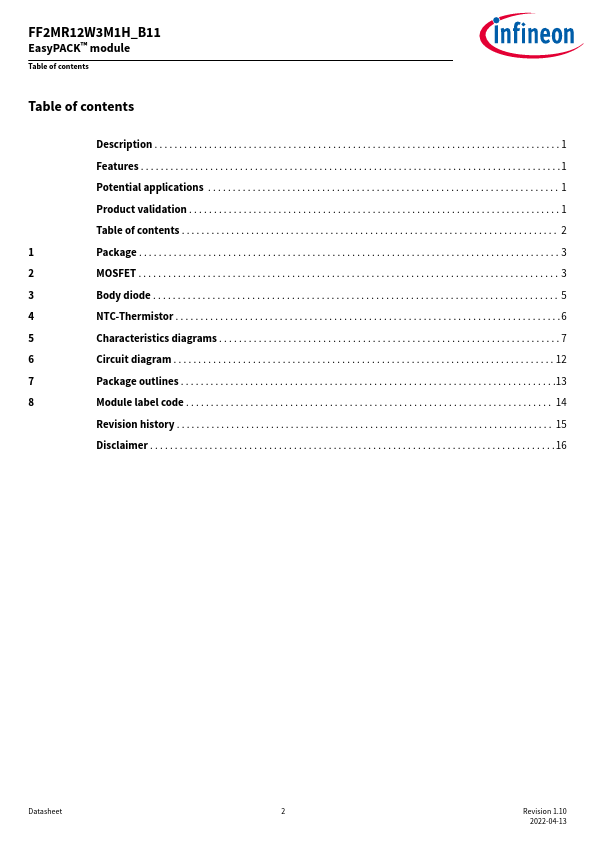

J Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.10 2022-04-13 FF2MR12W3M1H_B11 EasyPACK™ module Table of contents Table of contents Description .

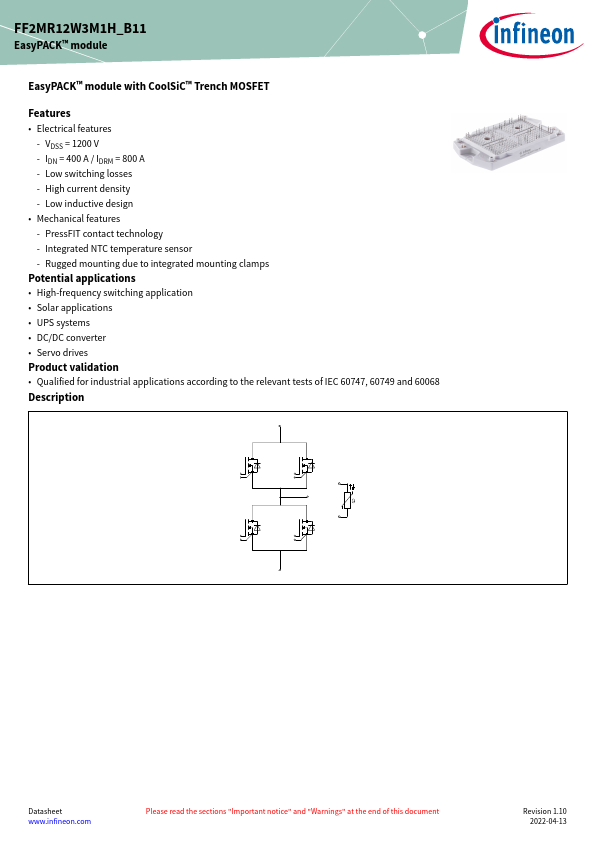

Features

Electrical features - VDSS = 1200 V - IDN = 400 A / IDRM = 800 A - Low switching losses - High current density - Low inductive design.
Mechanical features - PressFIT contact technology - Integrated NTC temperature sensor - Rugged mounting due to integrated mounting clamps Potential.
