FF2600UXTR33T2M1

The FF2600UXTR33T2M1 is XHP 2 module designed by Infineon.

Product Overview

Infineon

Datasheet Details

Part number	FF2600UXTR33T2M1
Manufacturer	Infineon
File Size	692.78 KB
Description	XHP 2 module
Datasheet	FF2600UXTR33T2M1-Infineon.pdf

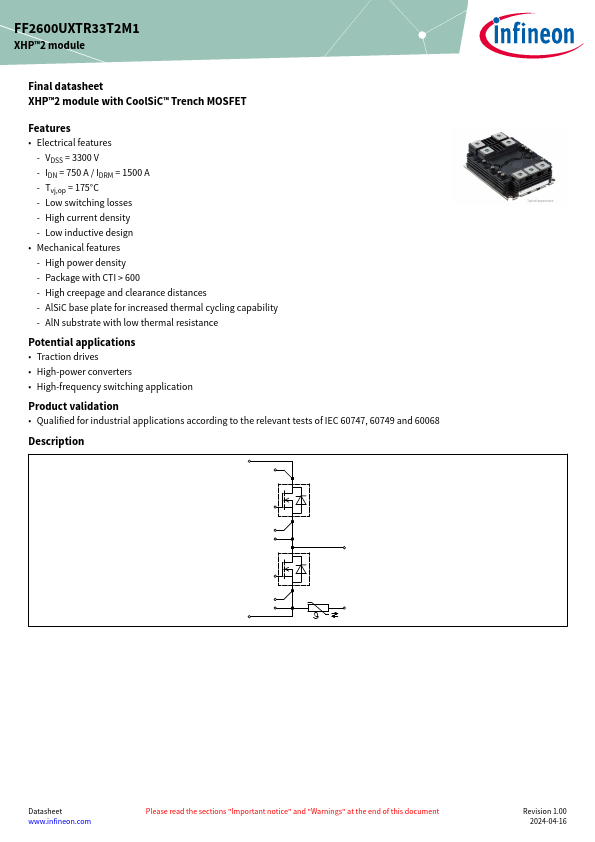

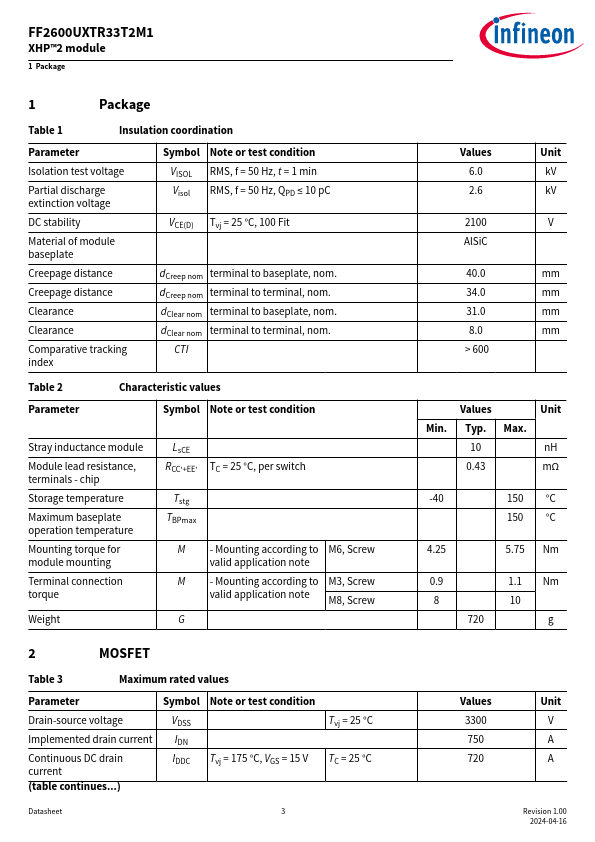

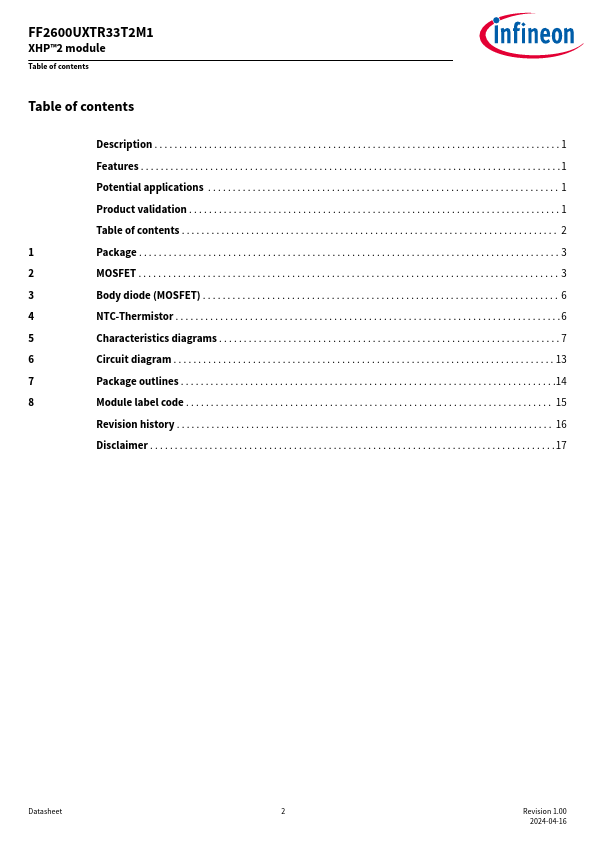

Additional preview pages of the FF2600UXTR33T2M1 datasheet.

Product details

Description

- Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2024-04-16 FF2600UXTR33T2M1 XHP™2 module Table of contents Table of contents Description .

Features

Electrical features - VDSS = 3300 V - IDN = 750 A / IDRM = 1500 A - Tvj,op = 175°C - Low switching losses - High current density - Low inductive design.
Mechanical features - High power density - Package with CTI > 600 - High creepage and clearance distances - AlSiC base plate for increased thermal cycling capability - AlN substrate with low thermal resistance Potential.
