F3L420R12W4H7_H11 - EasyPACK module

Name: F3L420R12W4H7_H11
SKU: F3L420R12W4H7_H11-1578800

Infineon

📥 Download Datasheet

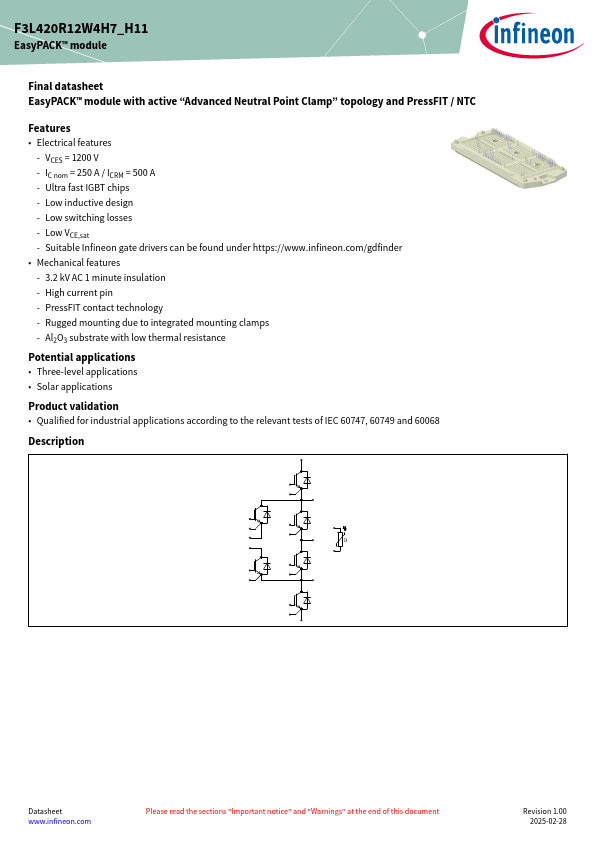

F3L420R12W4H7_H11 Datasheet Preview — Preview of F3L420R12W4H7_H11 PDF

Datasheet Details

Part number	F3L420R12W4H7_H11
Manufacturer	Infineon
File Size	1.21 MB
Description	EasyPACK module
Datasheet	F3L420R12W4H7_H11-Infineon.pdf

F3L420R12W4H7_H11 Product details

Description

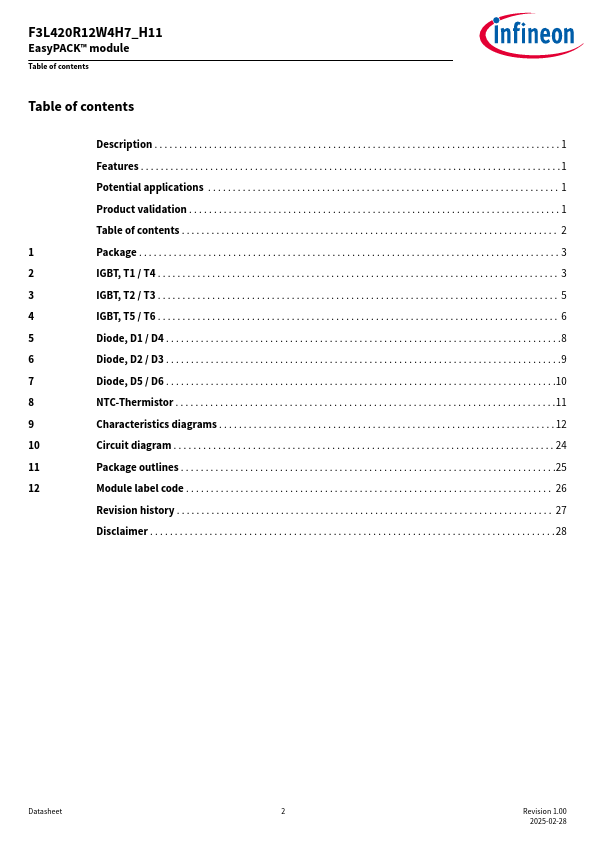

J Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2025-02-28 F3L420R12W4H7_H11 EasyPACK™ module Table of contents Table of contents Description .

Features

Electrical features - VCES = 1200 V - IC nom = 250 A / ICRM = 500 A - Ultra fast IGBT chips - Low inductive design - Low switching losses - Low VCE,sat - Suitable Infineon gate drivers can be found under https://www. infineon. com/gdfinder.
Mechanical features - 3.2 kV AC 1 minute insulation - High current pin - PressFIT contact technology - Rugged mounting due to integrated mounting clamps - Al2O3 substrate with low thermal resistance Potential.
