ESD156-B1-W0201 - Bi-directional ESD protection

Description

This Infineon ESD (electrostatic discharge) protection device has a bi-directional and symmetric I/V characteristic and excellent clamping performance.

ESD / transient protection according to: - IEC61000-4-2 (ESD): ±15 kV (air) / ±15 kV (contact) - IEC61000-4-4 (EFT): ±2.5 kV

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ESD1551P4 ESD Protection MCC
ESD15CA Transient Voltage Suppressors JGD
ESD15V23T-2A Transient Voltage Suppressors Array SOCAY
ESD15V51D-A UNIDIRECTIONAL TVS DIODE QYsemi
ESD15V52D-A Transient Voltage Suppressors UN Semiconductor

Other Datasheets by Infineon

Part Number Description
ESD101-B1-02 Protection Device
ESD102-U1-02ELS Transient Voltage Suppressor
ESD102-U2-099EL Transient Voltage Suppressor Diodes
ESD102-U4-05L Transient Voltage Suppressor Diodes
ESD103-B1-02 Bi-directional Femto Farad Capacitance TVS Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

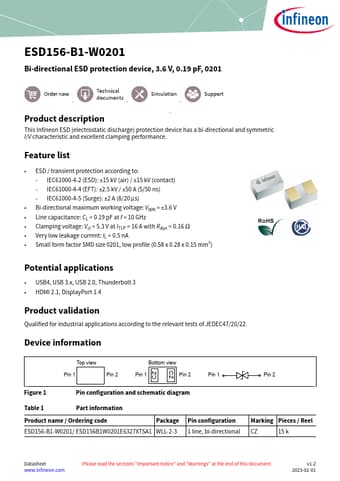

ESD156-B1-W0201 Bi-directional ESD protection device, 3.6 V, 0.19 pF, 0201 Product description This Infineon ESD (electrostatic discharge) protection device has a bi-directional and symmetric I/V characteristic and excellent clamping performance. Feature list • ESD / transient protection according to: - IEC61000-4-2 (ESD): ±15 kV (air) / ±15 kV (contact) - IEC61000-4-4 (EFT): ±2.5 kV / ±50 A (5/50 ns) - IEC61000-4-5 (Surge): ±2 A (8/20 μs) • Bi-directional maximum working voltage: VWM = ±3.6 V • Line capacitance: CL = 0.19 pF at f = 10 GHz • Clamping voltage: Vcl = 5.3 V at ITLP = 16 A with Rdyn = 0.16 Ω • Very low leakage current: IL = 0.5 nA • Small form factor SMD size 0201, low profile (0.58 x 0.28 x 0.15 mm³) Potential applications • USB4, USB 3.x, USB 2.0, Thunderbolt 3 • HDMI 2.
