CYT2B97CAS - 32-bit microcontroller

Download the CYT2B97CAS datasheet PDF (CYT2B9 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 32-bit microcontroller.

Description

CYT2B9 is a family of TRAVEO™ T2G microcontrollers targeted at automotive systems such as body control units.

CYT2B9 has an Arm® Cortex®-M4 CPU for primary processing, and an Arm® Cortex®-M0+ CPU for peripheral and security processing.

Features

  • Dual CPU subsystem - 160-MHz (max) 32-bit Arm® Cortex®-M4F CPU with.
  • Single-cycle multiply.
  • Single-precision floating point unit (FPU).
  • Memory protection unit (MPU) - 100-MHz (max) 32-bit Arm® Cortex® M0+ CPU with.
  • Single-cycle multiply.
  • Memory protection unit - Inter-processor communication in hardware - Three DMA controllers.
  • Peripheral DMA controller #0 (P-DMA0) with 92 channels.
  • Peripheral DMA controller #1 (P-DMA1) wi.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CYT2B9-Infineon.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • CYT2506 - White LED Step-Up Converter (CYT)
  • CYT2596 - 3A 150KHz 40V Buck DC/DC Converter (CYT)
  • CYT2606L - PFM Step-Up DC-DC Converter (CYT)
  • CYT1000A - Linear constant current LED Driver (JXY)
  • CYT1000AE - Linear constant current LED Driver (JXY)
  • CYT1000B - Linear constant current IC (JXY)
  • CYT101 - Voltage and Current Controller (CYT)
  • CYT1969 - High Performance Current Mode PWM Switching Power Supply Controller (CYT)
  • CYT3000A - High power factor linear constant-current driver (EgoLL)
  • CYT3000A - High power factor segmented linear constant current LED controller (CYT)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text

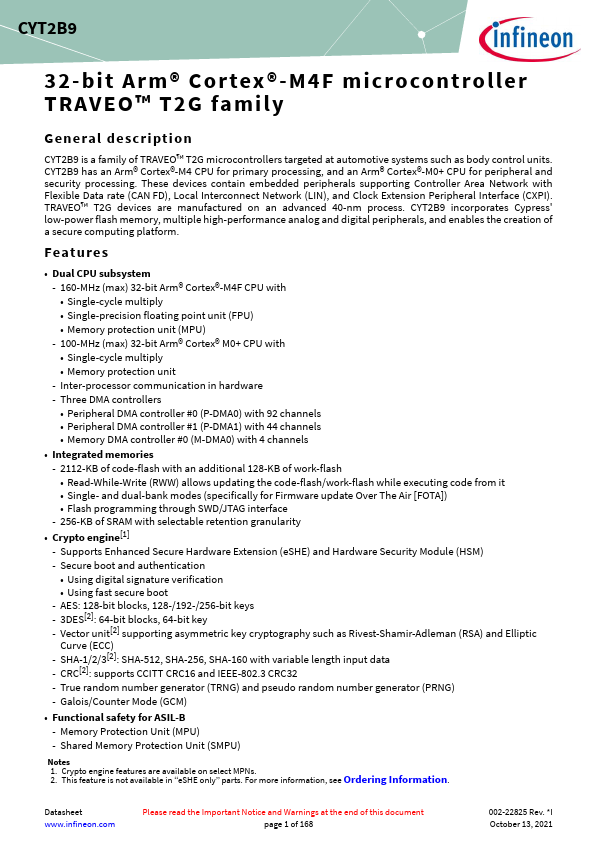

CYT2B9 32-bit Arm® Cortex®-M4F microcontroller TRAVEO™ T2G family General description CYT2B9 is a family of TRAVEO™ T2G microcontrollers targeted at automotive systems such as body control units. CYT2B9 has an Arm® Cortex®-M4 CPU for primary processing, and an Arm® Cortex®-M0+ CPU for peripheral and security processing. These devices contain embedded peripherals supporting Controller Area Network with Flexible Data rate (CAN FD), Local Interconnect Network (LIN), and Clock Extension Peripheral Interface (CXPI). TRAVEO™ T2G devices are manufactured on an advanced 40-nm process. CYT2B9 incorporates Cypress' low-power flash memory, multiple high-performance analog and digital peripherals, and enables the creation of a secure computing platform.
