CY8C4146AXI-S445 - 4100S Plus MCU

Download the CY8C4146AXI-S445 datasheet PDF. This datasheet also covers the CY8C4126AXI-S443 variant, as both devices belong to the same 4100s plus mcu family and are provided as variant models within a single manufacturer datasheet.

Description

PSoC™ 4 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with an Arm® Cortex®-M0+ CPU.

It combines programmable and reconfigurable analog and digital blocks with flexible automatic routing.

Features

  • 32-bit MCU subsystem - 48 MHz Arm® Cortex®-M0+ CPU with single-cycle multiply - Up to 128 KB of flash with read accelerator - Up to 16 KB of SRAM - 8-channel DMA engine.
  • Programmable analog - Two opamps with reconfigurable high-drive external and high-bandwidth internal drive and comparator modes and ADC input buffering capability. Opamps can operate in Deep Sleep low-power mode. - 12-bit 1-Msps SAR ADC with differential and single-ended modes, and Channel Sequencer with signa.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CY8C4126AXI-S443-Infineon.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
CY8C4146 32-bit MCU Cypress
CY8C41123 Linear Power Devices Cypress Semiconductor
CY8C41223 Linear Power Devices Cypress Semiconductor
CY8C4124AXI-443 Programmable System-on-Chip Cypress Semiconductor
CY8C4124AZI-443 Programmable System-on-Chip Cypress Semiconductor

Other Datasheets by Infineon

Part Number Description
CY8C4146AXI-S443 4100S Plus MCU
CY8C4146AXI-S453 4100S Plus MCU
CY8C4146AXI-S455 4100S Plus MCU
CY8C4146AXI-T403 MCU
CY8C4146AXI-T413 MCU

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

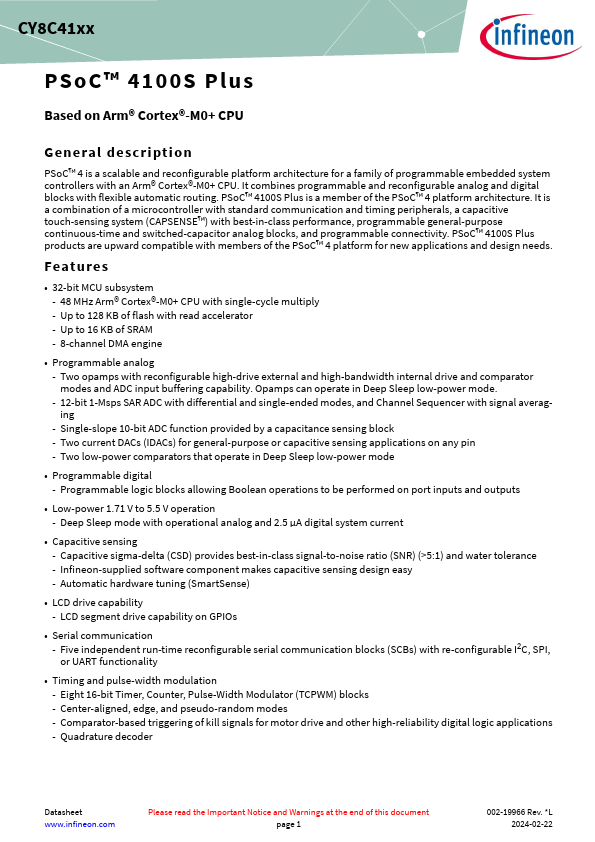

CY8C41xx PSoC™ 4100S Plus Based on Arm® Cortex®-M0+ CPU General description PSoC™ 4 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with an Arm® Cortex®-M0+ CPU. It combines programmable and reconfigurable analog and digital blocks with flexible automatic routing. PSoC™ 4100S Plus is a member of the PSoC™ 4 platform architecture. It is a combination of a microcontroller with standard communication and timing peripherals, a capacitive touch-sensing system (CAPSENSE™) with best-in-class performance, programmable general-purpose continuous-time and switched-capacitor analog blocks, and programmable connectivity.
