BTT6030-2ERB - Smart High-Side Power Switch

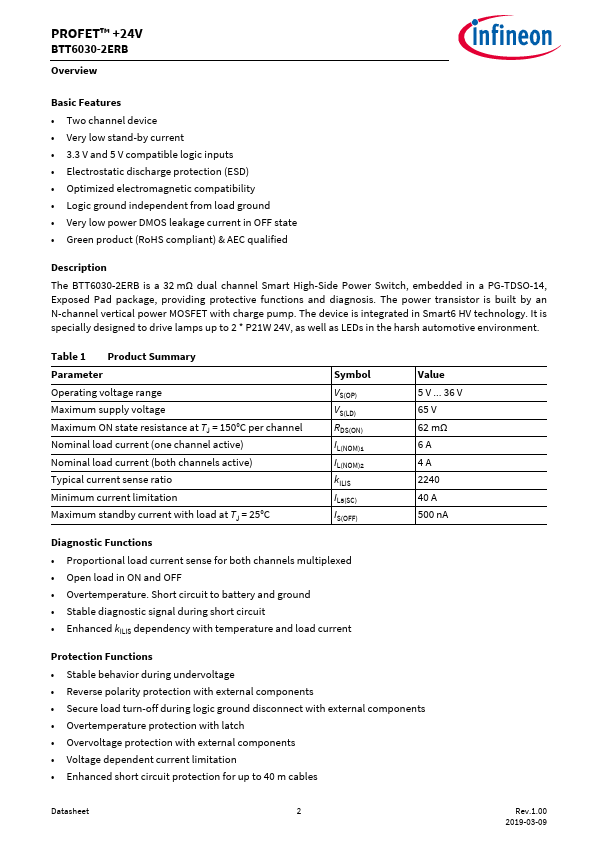

Description

The BTT6030-2ERB is a 32 mΩ dual channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, providing protective functions and diagnosis.

The power transistor is built by an N-channel vertical power MOSFET with charge pump.

The device is integrated in Smart6 HV technology.

Features

  • Two channel device.
  • Very low stand-by current.
  • 3.3 V and 5 V compatible logic inputs.
  • Electrostatic discharge protection (ESD).
  • Optimized electromagnetic compatibility.
  • Logic ground independent from load ground.
  • Very low power DMOS leakage current in OFF state.
  • Green product (RoHS compliant) & AEC qualified.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Infineon

Part Number Description
BTT6030-2ERA Smart High-Side Power Switch
BTT6030-2EKA Smart High-Side Power Switch
BTT6030-1EKA Smart High-Side Power Switch
BTT6030-1ERA Smart High-Side Power Switch
BTT6035-1ERL smart high-side power switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

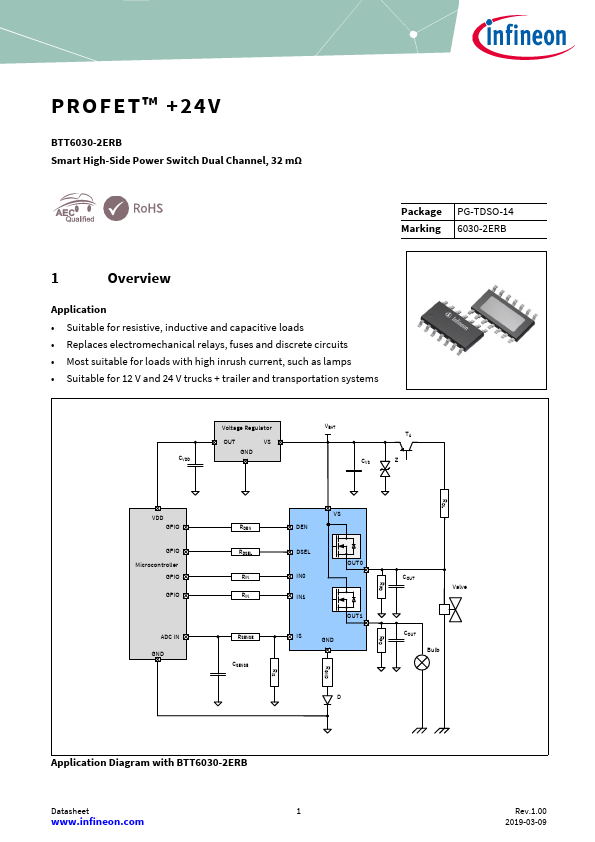

PROFET™ +24V BTT6030-2ERB Smart High-Side Power Switch Dual Channel, 32 mΩ Package PG-TDSO-14 Marking 6030-2ERB 1 Overview Application • Suitable for resistive, inductive and capacitive loads • Replaces electromechanical relays, fuses and discrete circuits • Most suitable for loads with high inrush current, such as lamps • Suitable for 12 V and 24 V trucks + trailer and transportation systems Voltage Regulator OUT VS CVDD GND VBAT T1 CVS Z ROL VDD GPIO GPIO M icr ocon tr oll er GPIO GPIO ADC IN GND RDEN RDSEL RIN RIN RSENSE CSENSE RGND RIS VS DEN DSEL IN0 IN1 RPD OUT0 OUT4 COUT Valve OUT1 IS GND RPD COUT Bulb D Application Diagram with BTT6030-2ERB Datasheet 1 www.infineon.com Rev.1.
