BTS72220-4ESA, Serial Interface Power Controller

The BTS72220-4ESA is a Serial Interface Power Controller, providing protection functions and diagnosis.

The device is integrated in SMART7 technology.

Data Sheet 2 Rev.

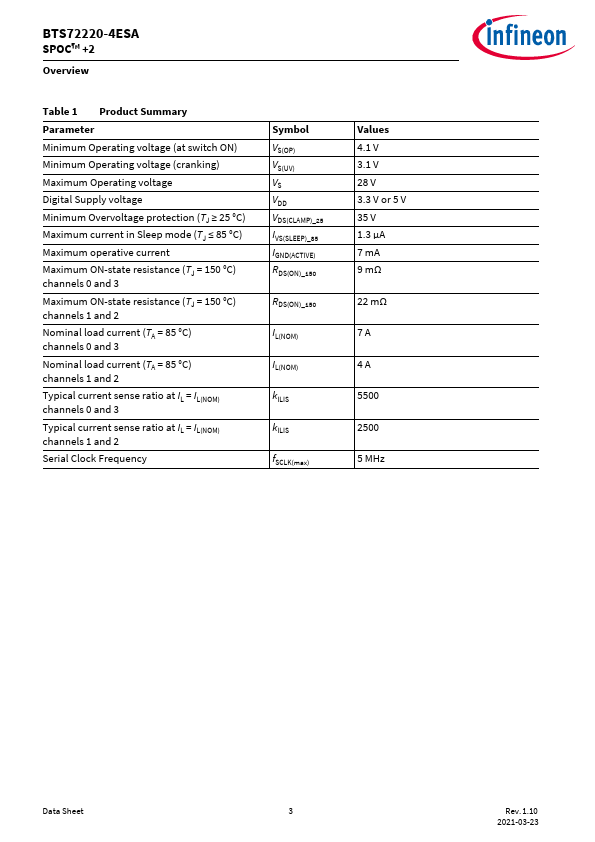

1.10 2021-03-23 BTS72220-4ESA SPOC™ +2 Overview Table 1 Product Summary Parameter Minimum Operating voltage (at switch ON) Mi

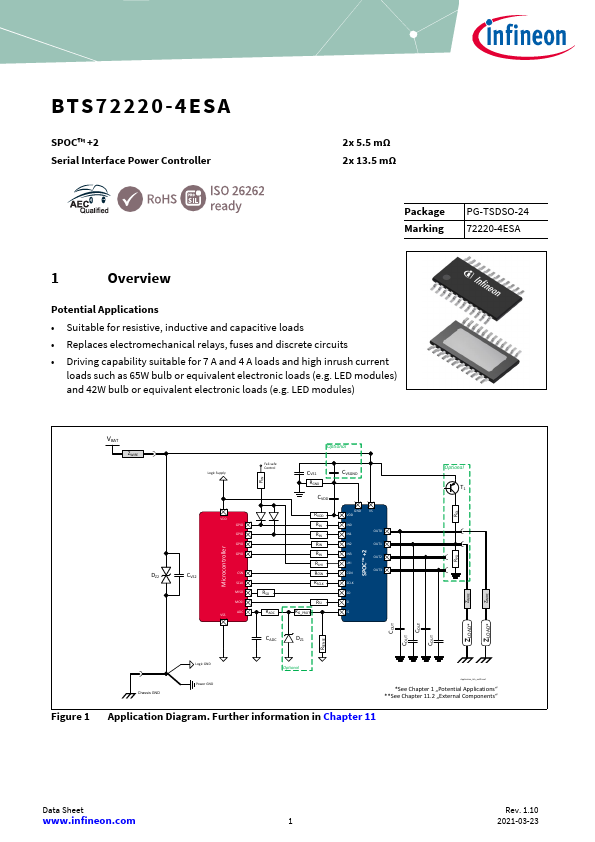

BTS72220-4ESA SPOC™ +2 Serial Interface Power Controller 2x 5.5 mΩ 2x 13.5 mΩ Package Marking PG-TSDSO-24 72220-4ESA 1 Overview Potential Applications Suitable for resistive, inductive and capacitive loads Replaces electromechanical relays, fuses and discrete circuits Driving capability suitable for 7 A and 4 A loads and high inrush current loads such as 65W bulb or equivalent electronic loads (e.g.

LED modules) and 42W bulb or equivalent electronic loads (e.g

BTS72220-4ESA Features

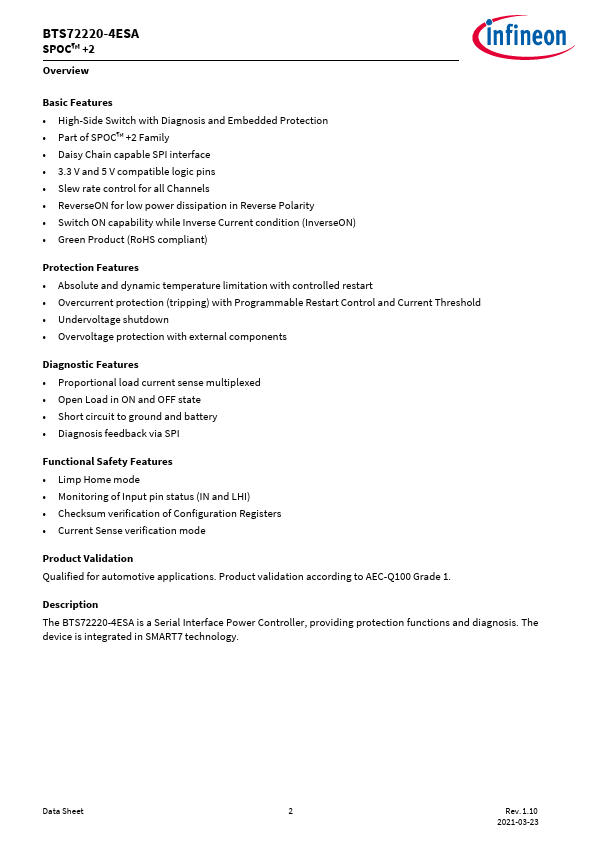

* High-Side Switch with Diagnosis and Embedded Protection

* Part of SPOC™ +2 Family

* Daisy Chain capable SPI interface

* 3.3 V and 5 V compatible logic pins

* Slew rate control for all Channels

* ReverseON for low power dissipation in Reverse Polarity
