BTM9011EP, BTM9010EP - full-bridge IC

Infineon

BTM9011EP Description

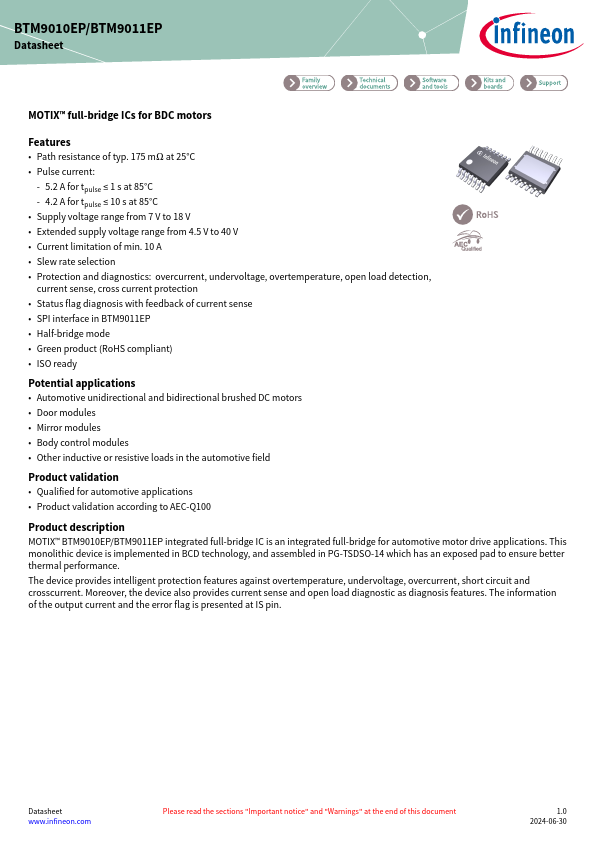

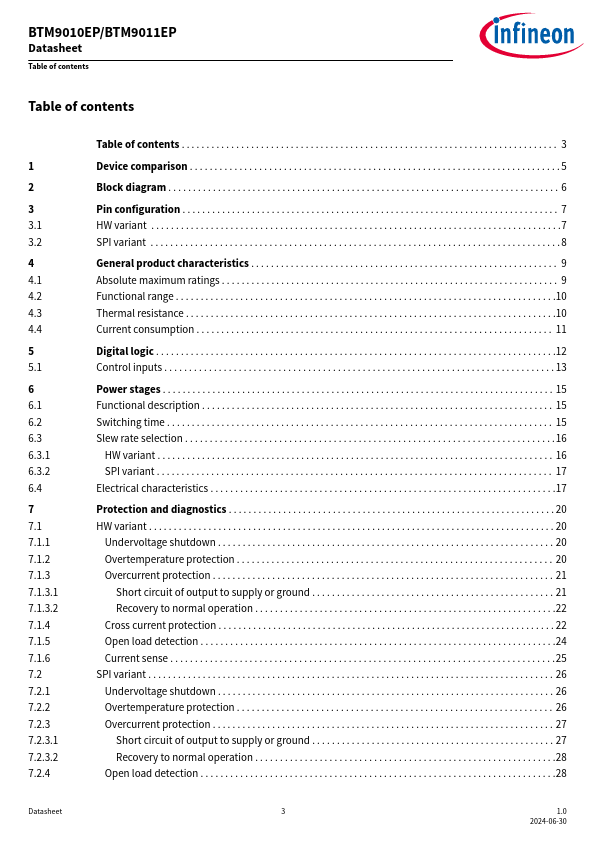

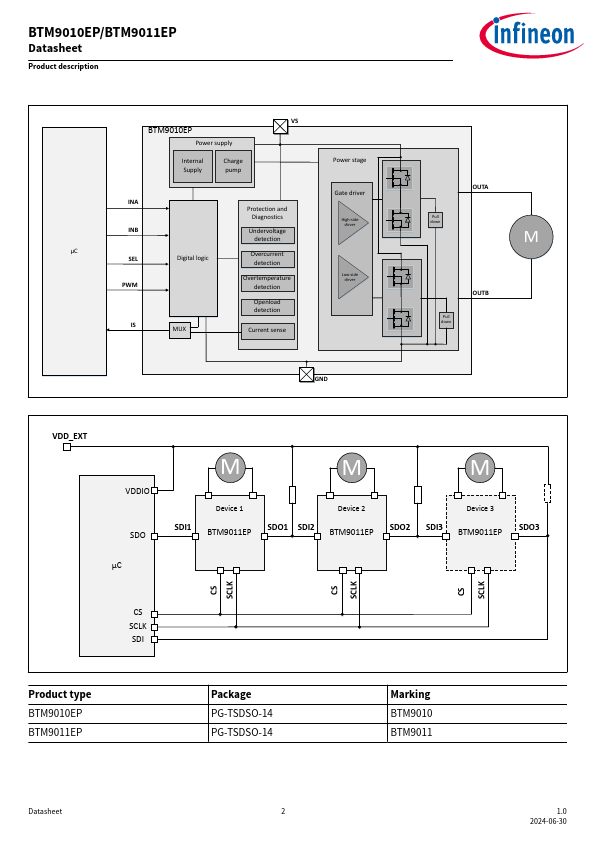

BTM9010EP/BTM9011EP Datasheet MOTIX™ full-bridge ICs for BDC motors .
MOTIX™ BTM9010EP/BTM9011EP integrated full-bridge IC is an integrated full-bridge for automotive motor drive applications.

BTM9011EP Features

* Path resistance of typ. 175 mΩ at 25°C
* Pulse current: - 5.2 A for tpulse ≤ 1 s at 85°C - 4.2 A for tpulse ≤ 10 s at 85°C
* Supply voltage range from 7 V to 18 V
* Extended supply voltage range from 4.5 V to 40 V
* Current limitation of min. 10 A

BTM9011EP Applications

* Automotive unidirectional and bidirectional brushed DC motors
* Door modules
* Mirror modules
* Body control modules
* Other inductive or resistive loads in the automotive field Product validation
* Qualified for automotive applications
* Pro

📥 Download Datasheet

BTM9011EP Datasheet Preview — This datasheet PDF includes multiple part numbers: BTM9011EP, BTM9010EP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: BTM9011EP, BTM9010EP
Manufacturer: Infineon ↗
File Size: 1.27 MB
Datasheet: BTM9010EP-Infineon.pdf
Description: full-bridge IC
Note: This datasheet PDF includes multiple part numbers: BTM9011EP, BTM9010EP.
Please refer to the document for exact specifications by model.
