BSC096N10LS5 - 100V MOSFET

BSC096N10LS5 Description

BSC096N10LS5 MOSFET OptiMOSTM5 Power-Transistor, 100 V .

BSC096N10LS5 Features

* Ideal for high-frequency switching
* 100% avalanche tested
* Superior thermal resistance
* N-channel, logic level
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21
* Optimized for chargers Product validation Ful

BSC096N10LS5 Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 100 V RDS(on),max 9.6 mΩ ID 72 A Qoss 30 nC QG(0V. .4.5V) 12 nC SuperSO8 8 7 65 56 78 1 23 4 4321 S1 8D S2 7D S3 6D G4 5D Type / Ordering Code BSC096N10LS5 Package PG-TDSON-8 Marking 096N10LS Related L

📥 Download Datasheet

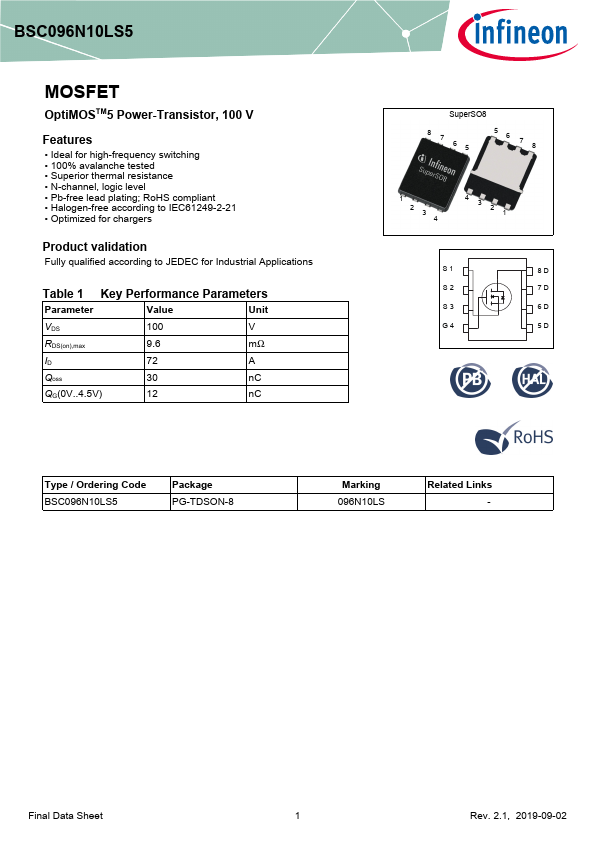

Preview of BSC096N10LS5 PDF

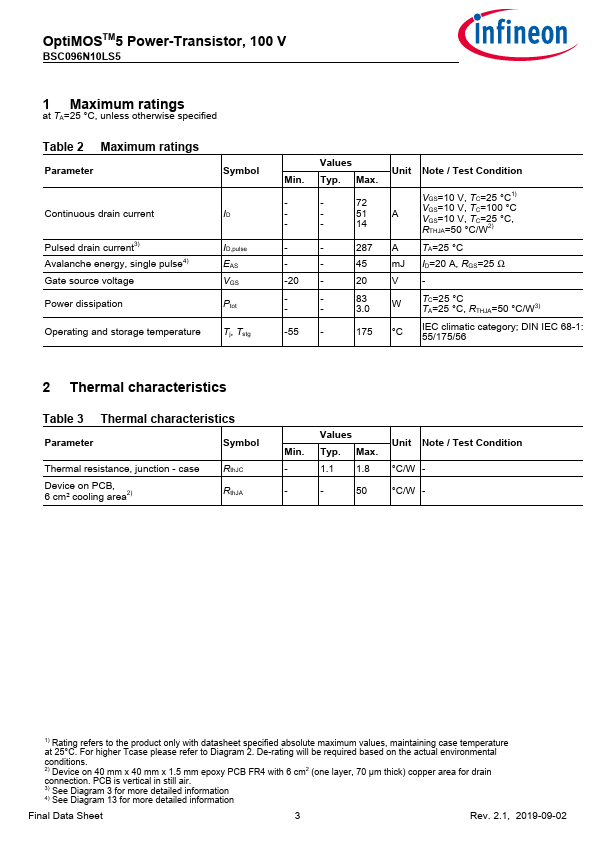

datasheet Preview Page 2 datasheet Preview Page 3
