Datasheet Details
- Part number
- BSC088N15LS5
- Manufacturer
- Infineon ↗
- File Size
- 1.38 MB
- Datasheet
- BSC088N15LS5-Infineon.pdf
- Description
- 150V MOSFET
BSC088N15LS5 Description

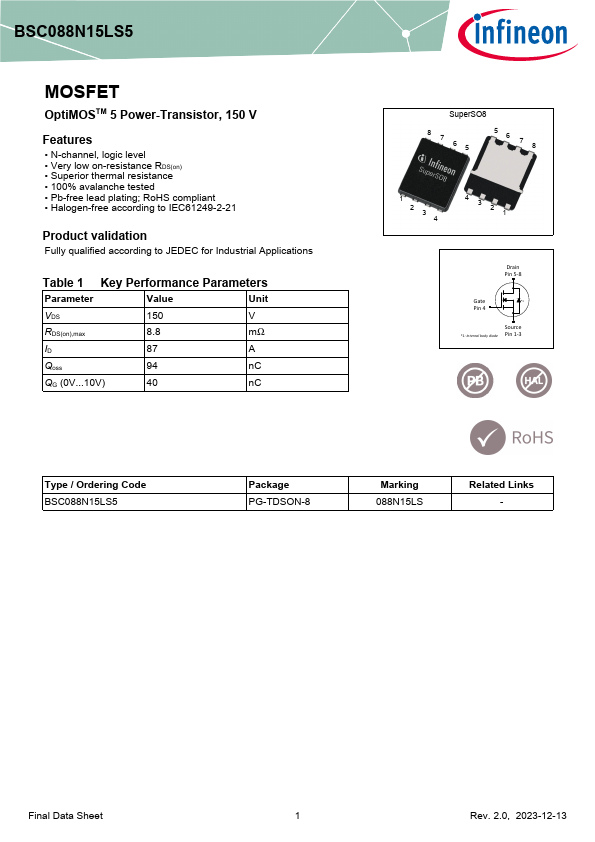

BSC088N15LS5 MOSFET OptiMOSTM 5 Power-Transistor, 150 V .
BSC088N15LS5 Features
* N-channel, logic level
* Very low on-resistance RDS(on)
* Superior thermal resistance
* 100% avalanche tested
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21
Product validation
Fully qualified according to JEDEC for I
BSC088N15LS5 Applications
* Table 1 Key Performance Parameters
Parameter
Value
Unit
VDS
150
V
RDS(on),max
8.8
mΩ
ID
87
A
Qoss
94
nC
QG (0V10V)
40
nC
SuperSO8
8 7 65
56 78
1 23 4
4321
Drain Pin 5-8
Gate
* 1
Pin 4
Source
* 1: Internal body diode Pin 1-3
Type / Ordering Code BSC088N15LS5
P
