BGSA406MN10 - Ultra high RF voltage antenna tuning switch

Product Overview

Infineon

📥 Download Datasheet

BGSA406MN10 Ultra high RF voltage antenna tuning switch by Infineon - Datasheet Preview — Datasheet preview – BGSA406MN10

Datasheet Details

Part number	BGSA406MN10
Manufacturer	Infineon
File Size	115.88 KB
Description	Ultra high RF voltage antenna tuning switch
Datasheet	BGSA406MN10 Datasheet

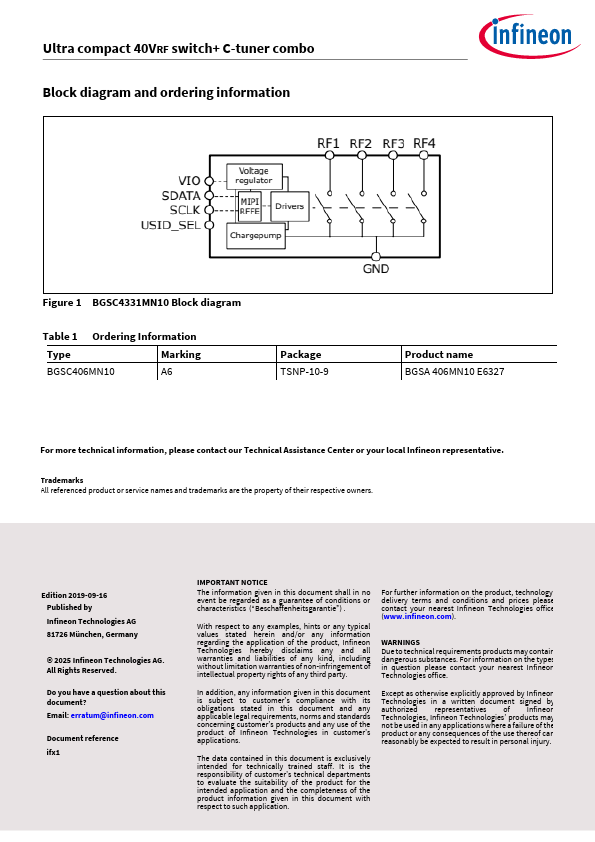

Additional preview pages of the BGSA406MN10 datasheet.

Product details

Description

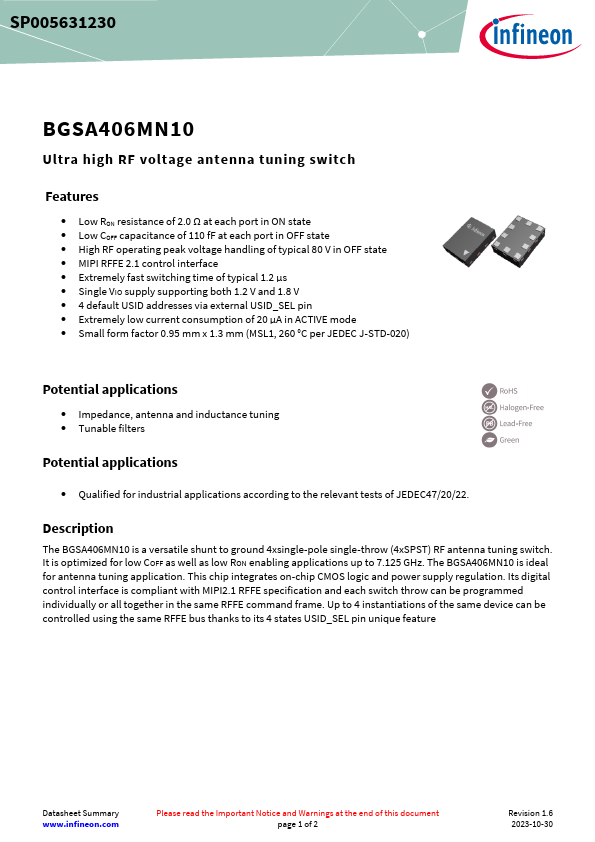

The BGSA406MN10 is a versatile shunt to ground 4xsingle-pole single-throw (4xSPST) RF antenna tuning switch.

Features

Low RON resistance of 2.0 Ω at each port in ON state.
Low COFF capacitance of 110 fF at each port in OFF state.
High RF operating peak voltage handling of typical 80 V in OFF state.
MIPI RFFE 2.1 control interface.
Extremely fast switching time of typical 1.2 µs.
Single VIO supply supporting both 1.2 V and 1.8 V.
4 default USID addresses via external USID_SEL pin.
Extremely low current consumption of 20 µA in ACTIVE mode.
