BGA5L1BN6 - 18dB High Gain Low Noise Amplifier

Infineon

📥 Download Datasheet

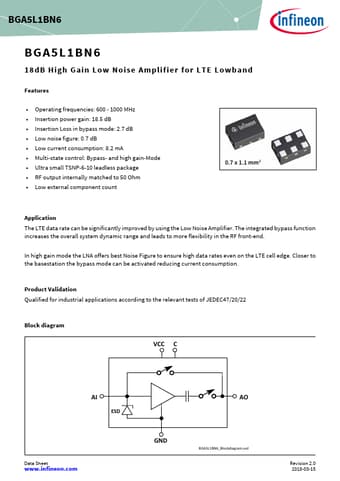

BGA5L1BN6 Datasheet Preview — Preview of BGA5L1BN6 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BGA5L1BN6
Manufacturer	Infineon
File Size	287.60 KB
Description	18dB High Gain Low Noise Amplifier
Datasheet	BGA5L1BN6-Infineon.pdf

BGA5L1BN6 Product details

Features

Operating frequencies: 600 - 1000 MHz.
Insertion power gain: 18.5 dB.
Insertion Loss in bypass mode: 2.7 dB.
Low noise figure: 0.7 dB.
Low current consumption: 8.2 mA.
Multi-state control: Bypass- and high gain-Mode.
Ultra small TSNP-6-10 leadless package.
RF output internally matched to 50 Ohm.
Low external component count 0.7 x 1.1 mm2.
