BAS3010B-03W, BAS3010B Medium Power AF Schottky Diode

BAS3010B-03W Description

Medium Power AF Schottky Diode * Forward current: 1 A * Reverse voltage: 30 V * Low forward voltage, low reverse current <.

BAS3010B-03W Applications

* Pb-free (RoHS compliant) package1)
* Qualified according AEC Q101 BAS3010B BAS3010B-03W  Type BAS3010B-03W Package SOD323 Configuration single Marking 2/ red Maximum Ratings at TA = 25°C, unless otherwise specified Parameter Symbol Value Unit Diode reverse voltage2) Fo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAS3010B-03W, BAS3010B. Please refer to the document for exact specifications by model.

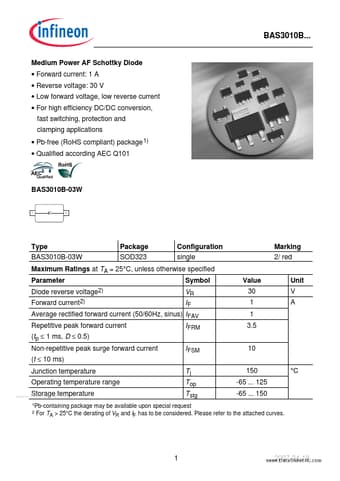

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAS3010B-03W, BAS3010B
Manufacturer
Infineon ↗
File Size
88.71 KB
Datasheet
BAS3010B_InfineonTechnologies.pdf
Description
Medium Power AF Schottky Diode
Note
This datasheet PDF includes multiple part numbers: BAS3010B-03W, BAS3010B.
Please refer to the document for exact specifications by model.
