BAR50-03W, BAR50-02L Silicon PIN Diodes

Infineon

Description

Silicon PIN Diodes * Current-controlled RF resistor for switching and attenuating applications * Frequency range above 10 MHz up to 6 .

📥 Download Datasheet

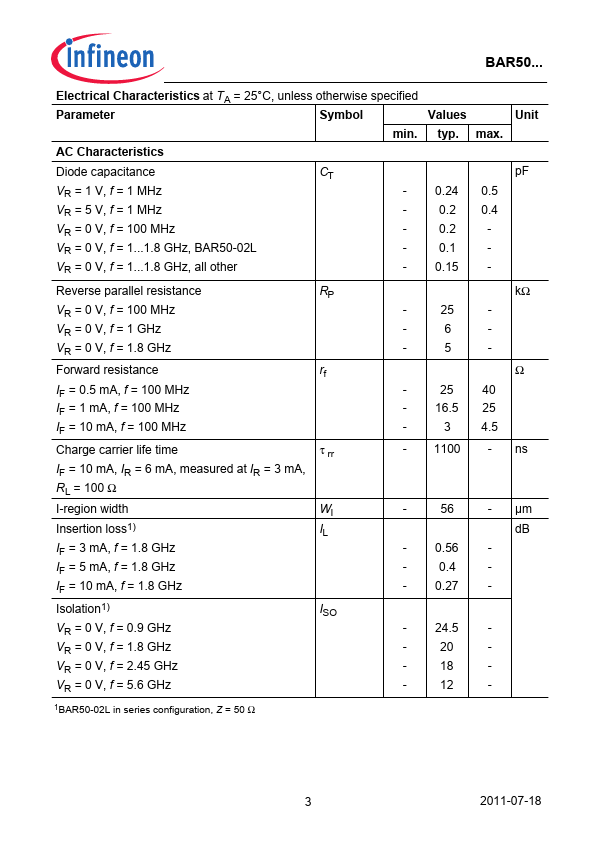

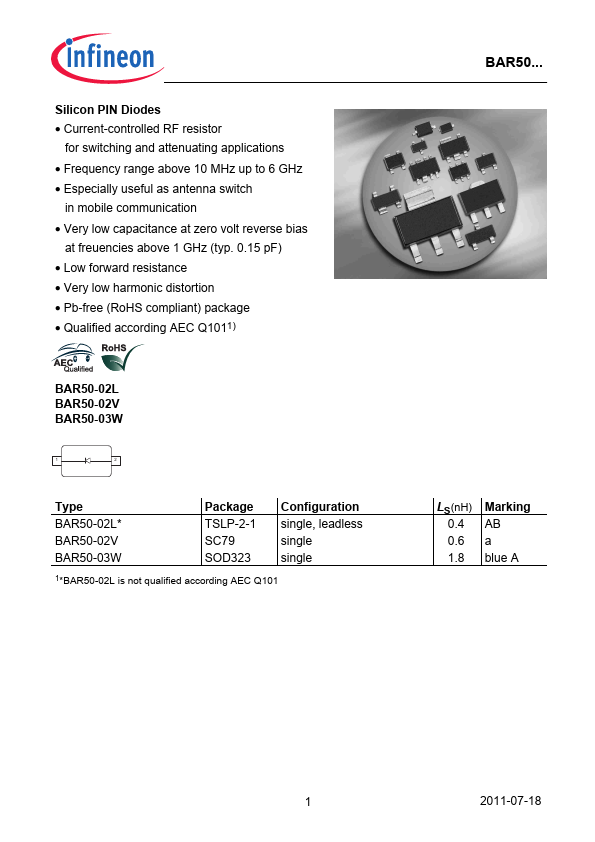

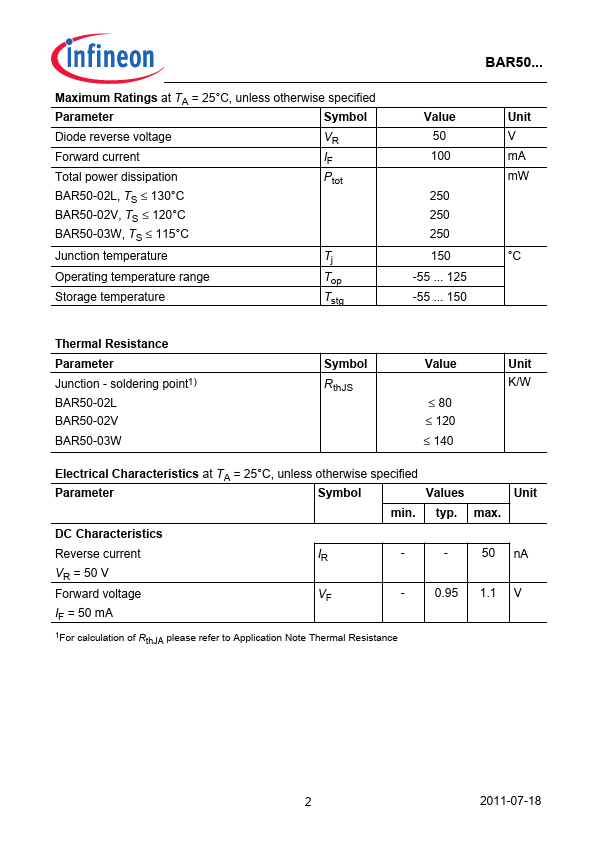

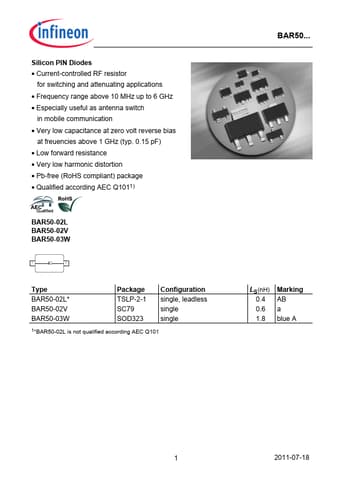

BAR50-03W Datasheet Preview — This datasheet PDF includes multiple part numbers: BAR50-03W, BAR50-02L. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BAR50-03W, BAR50-02L
Manufacturer: Infineon ↗
File Size: 0.95 MB
Datasheet: BAR50-02L-Infineon.pdf
Description: Silicon PIN Diodes
Note: This datasheet PDF includes multiple part numbers: BAR50-03W, BAR50-02L.
Please refer to the document for exact specifications by model.

Applications

* Frequency range above 10 MHz up to 6 GHz
* Especially useful as antenna switch in mobile communication
* Very low capacitance at zero volt reverse bias at freuencies above 1 GHz (typ. 0.15 pF)
* Low forward resistance
* Very low harmonic distortion
