BAL99 - Silicon Switching Diode

BAL99 Description

Silicon Switching Diode * For high-speed switching applications * Pb-free (RoHS compliant) package1) * Qualified according AEC.

BAL99 Applications

* Pb-free (RoHS compliant) package1)
* Qualified according AEC Q101 BAL99 BAL99 !  Type BAL99 Package SOT23 Configuration single Maximum Ratings at TA = 25°C, unless otherwise specified Parameter Symbol Diode reverse voltage Peak reverse voltageForward current Peak forward

📥 Download Datasheet

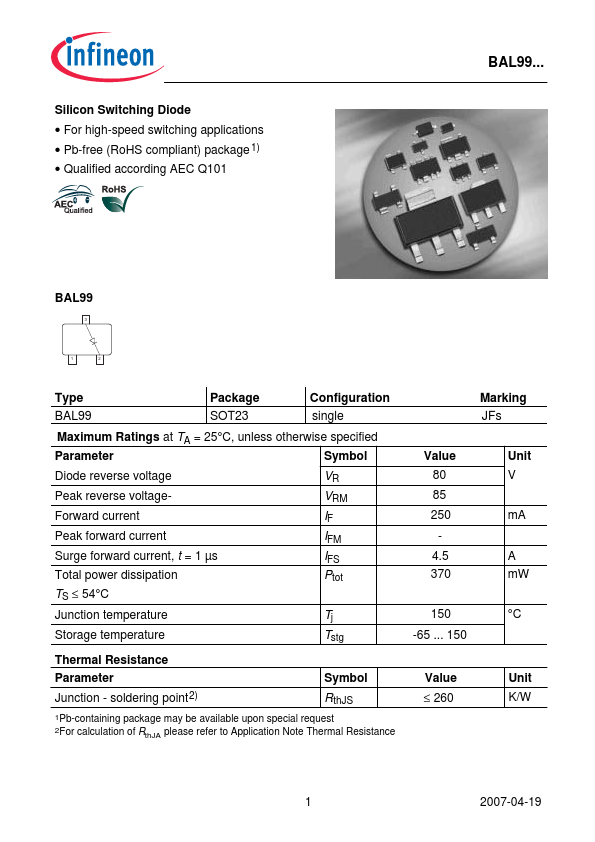

Preview of BAL99 PDF

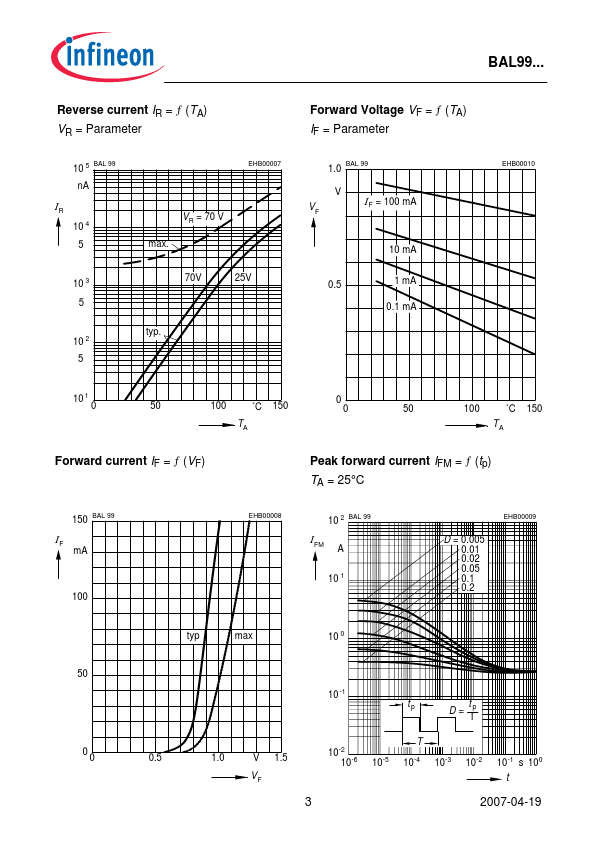

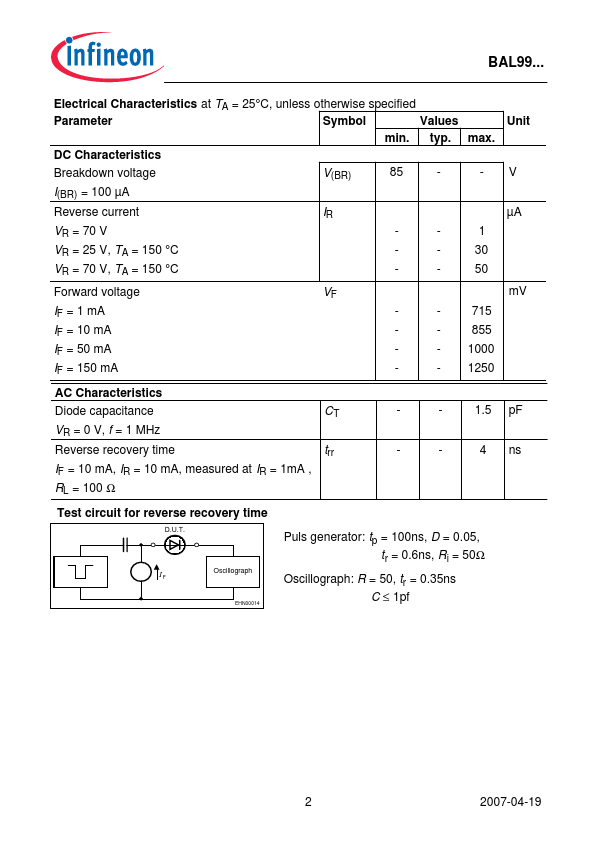

datasheet Preview Page 2 datasheet Preview Page 3
