AIMDQ75R060M2H - Automotive 750V SiC MOSFET

Description

1 Maximum ratings 3 T

Features

  • Highly robust 750V technology, 100% avalanche tested.
  • Best‑in‑class RDS(on) x Qfr.
  • Excellent RDS(on) x Qoss and RDS(on) x QG.
  • Unique combination of low Crss/Ciss and high VGS(th).
  • Infineon proprietary die attach technology.
  • Cutting edge TSC package with material group I.
  • Driver source pin available Benefits.
  • Enhanced robustness and reliability for bus voltages beyond 500 V.
  • Superior efficiency in hard switching.

📥 Download Datasheet

📁 Similar Datasheet

  • AIM5C05B060N1 - Intelligent Power Module (Alpha & Omega Semiconductors)
  • AIM5C05B060N1S - Intelligent Power Module (Alpha & Omega Semiconductors)
  • AIM5D05B060N1 - Intelligent Power Module (Alpha & Omega Semiconductors)
  • AIM5D10L060Q4 - Dual-In-Line Package Intelligent Power Module (Alpha & Omega Semiconductors)
  • AIM5D10L060Q4S - Dual-In-Line Package Intelligent Power Module (Alpha & Omega Semiconductors)
  • AIM702H50B - Intelligent Power Module (Alpha & Omega Semiconductors)
  • AIM702S60C1 - Intelligent Power Module (Alpha & Omega Semiconductors)
  • AIM702S60V1 - Intelligent Power Module (Alpha & Omega Semiconductors)
  • AIM703S60C1 - Intelligent Power Module (Alpha & Omega Semiconductors)
  • AIM704H50B - Intelligent Power Module (Alpha & Omega Semiconductors)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text

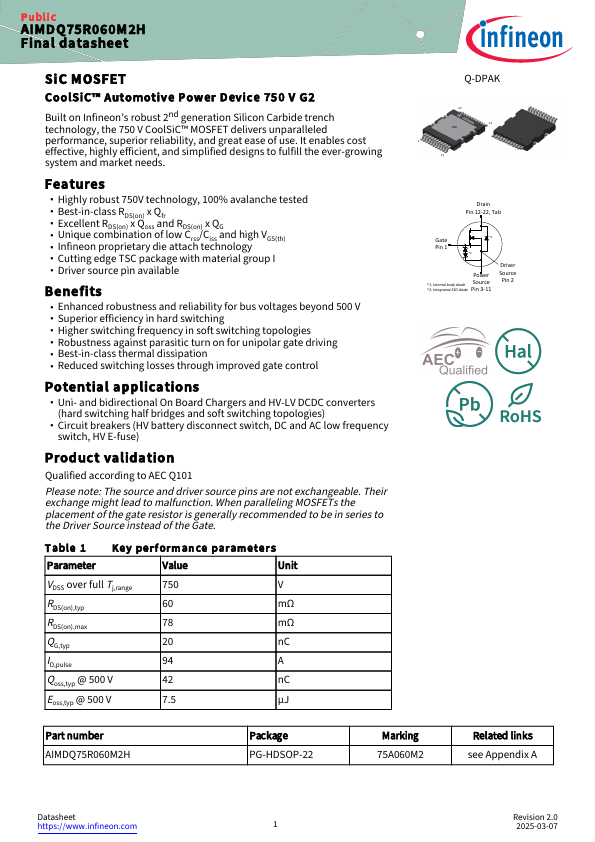

Public AIMDQ75R060M2H Final datasheet SiC MOSFET CoolSiC™ Automotive Power Device 750 V G2 Built on Infineon’s robust 2nd generation Silicon Carbide trench technology, the 750 V CoolSiC™ MOSFET delivers unparalleled performance, superior reliability, and great ease of use. It enables cost effective, highly efficient, and simplified designs to fulfill the ever‑growing system and market needs.
