4N04L04 - Power-Transistor

Name: 4N04L04
SKU: 4N04L04-1587070

Infineon

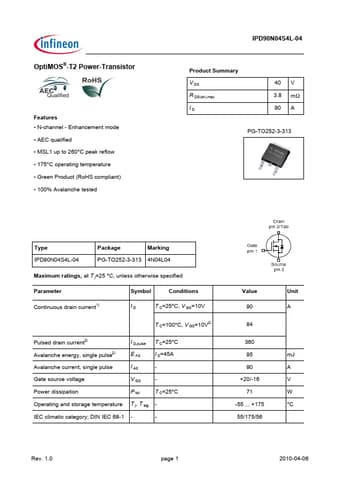

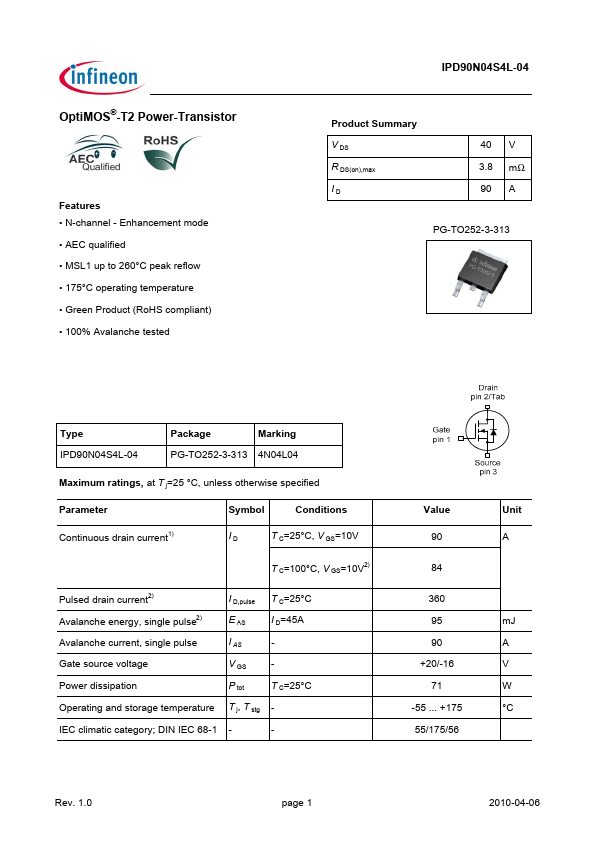

The 4N04L04 by Infineon is a Power-Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	4N04L04
Manufacturer	Infineon
File Size	150.72 KB
Description	Power-Transistor
Datasheet	4N04L04-Infineon.pdf

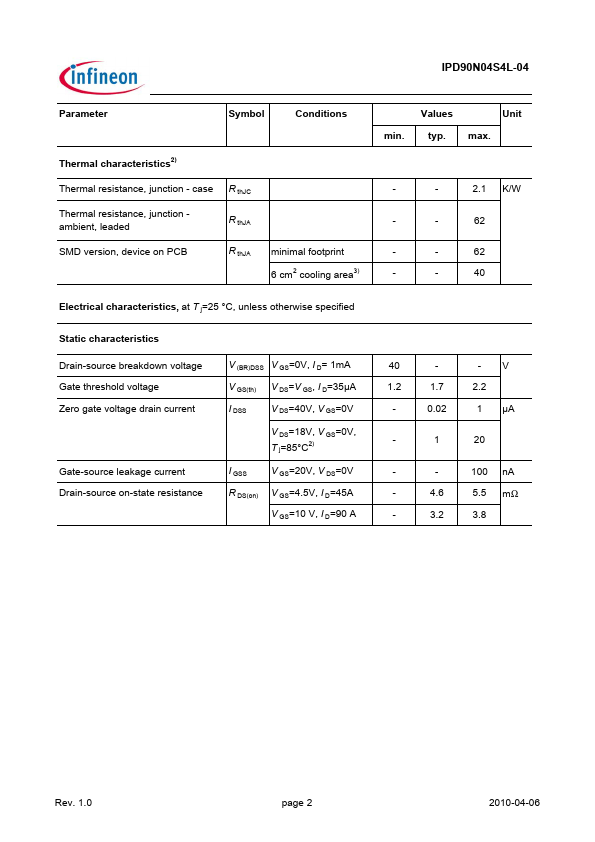

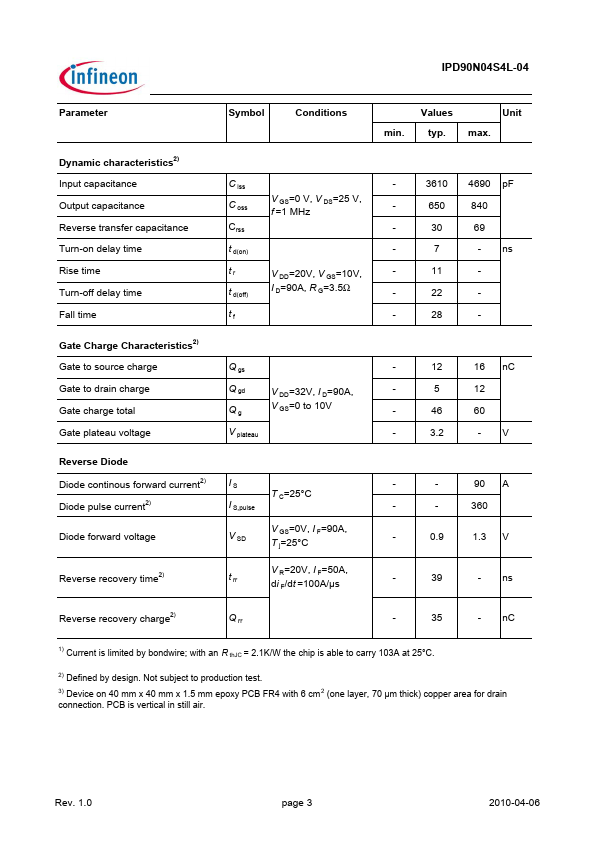

Additional preview pages of the 4N04L04 datasheet.

N-channel - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPD90N04S4L-04 Product Summary V DS R DS(on),max ID 40 V 3.8 mΩ 90 A PG-TO252-3-313 Type IPD90N04S4L-04 Package Marking PG-TO252-3-313 4N04L04 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain current1) ID T C=25°C, V G.
