4DIR2401H - Robust Digital Isolators

Download the 4DIR2401H datasheet PDF. This datasheet also covers the 4DIR0400H variant, as both devices belong to the same robust digital isolators family and are provided as variant models within a single manufacturer datasheet.

Description

The ISOFACE™ 4DIRx4xxH quad-channel digital isolator family supports data rates up to 40 Mbps and ensures robust data communication over a wide ambient operating temperature range (-40°C to +125°C) and across production spread.

Features

  • Data rates up to 40 Mbps.
  • Wide operating supply voltage 2.7 V - 6.5 V.
  • Low current consumption (max. 1.6 mA/ch @ 1 Mbps, 3.3 V, 15 pF).
  • High CMTI of min. 100 kV/µs.
  • Propagation delay typ 26 ns with 3 ns channel-to-channel mismatch.
  • Max 3 ns pulse width distortion @ 3.3 V.
  • Variable CMOS input thresholds with default output high or low options.
  • RoHS compliant PG-DSO-16 wide-body 300 mil package Isolation and safety certificat.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (4DIR0400H-Infineon.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Infineon

Part Number Description
4DIR2401HA Robust digital isolators
4DIR2400H Robust Digital Isolators
4DIR2400HA Robust digital isolators
4DIR0400H Robust Digital Isolators
4DIR0400HA Robust digital isolators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

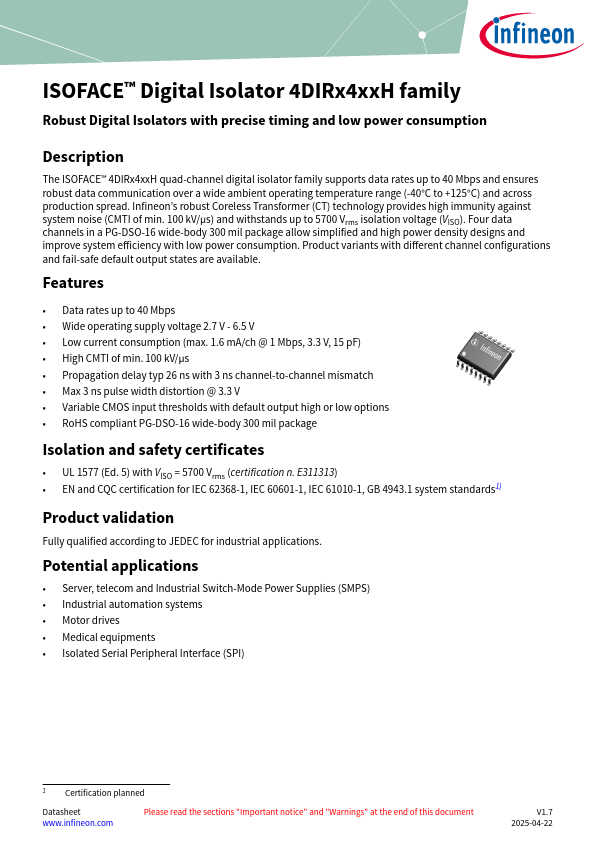

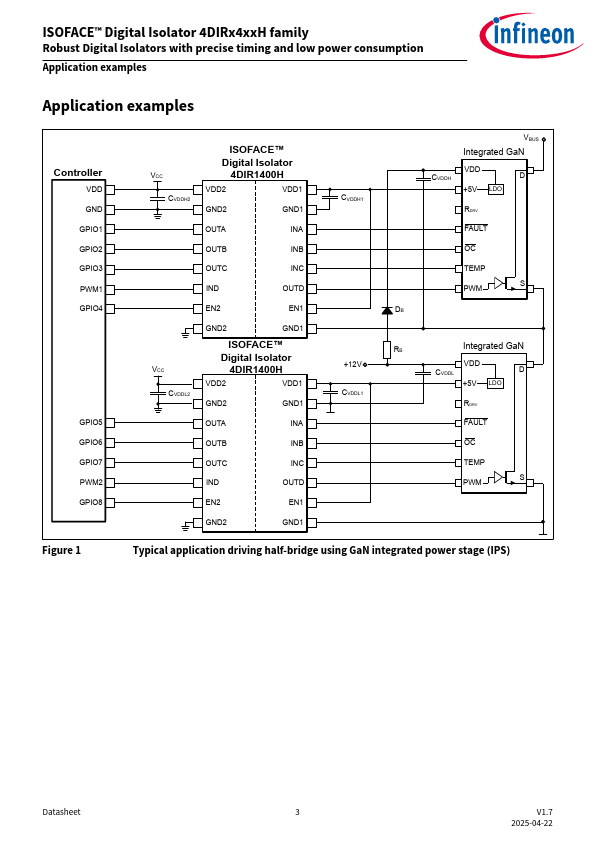

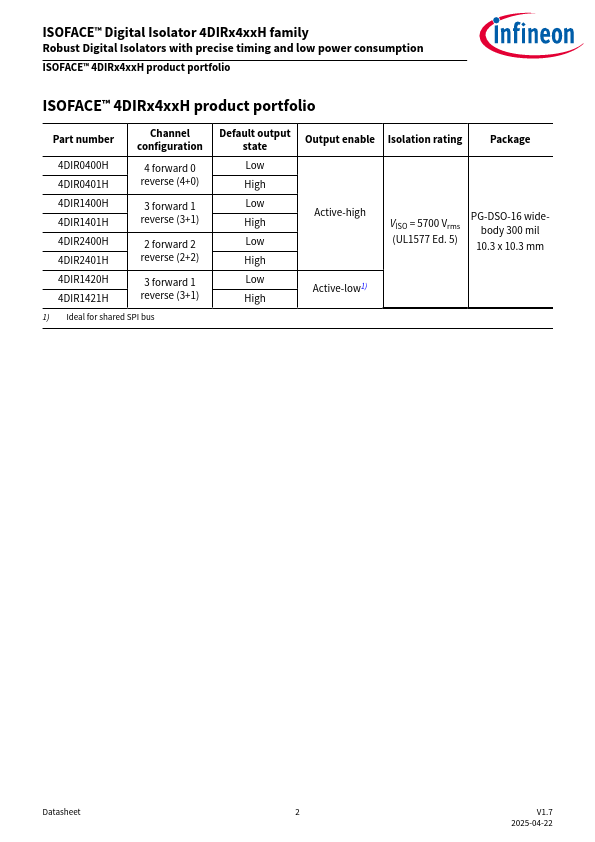

ISOFACE™ Digital Isolator 4DIRx4xxH family Robust Digital Isolators with precise timing and low power consumption Description The ISOFACE™ 4DIRx4xxH quad-channel digital isolator family supports data rates up to 40 Mbps and ensures robust data communication over a wide ambient operating temperature range (-40°C to +125°C) and across production spread. Infineon’s robust Coreless Transformer (CT) technology provides high immunity against system noise (CMTI of min. 100 kV/µs) and withstands up to 5700 Vrms isolation voltage (VISO). Four data channels in a PG-DSO-16 wide-body 300 mil package allow simplified and high power density designs and improve system efficiency with low power consumption.
