2N06L05 - Power-Transistor

Name: 2N06L05
SKU: 2N06L05-1268872

Infineon

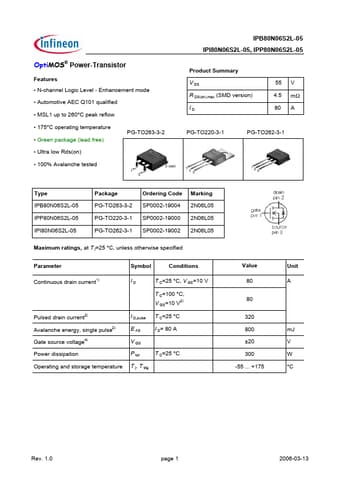

The 2N06L05 by Infineon is a Power-Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2N06L05
Manufacturer	Infineon
File Size	320.48 KB
Description	Power-Transistor
Datasheet	2N06L05-Infineon.pdf
Additional preview pages of the 2N06L05 datasheet.

N-channel Logic Level - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (lead free) PG-TO263-3-2.
Ultra low Rds(on).
100% Avalanche tested IPB80N06S2L-05 IPI80N06S2L-05, IPP80N06S2L-05 Product Summary V DS R DS(on),max (SMD version) ID 55 V 4.5 mΩ 80 A PG-TO220-3-1 PG-TO262-3-1 Type IPB80N06S2L-05 IPP80N06S2L-05 IPI80N06S2L-05 Package PG-TO263-3-2.
