2EDR9258X - Dual-channel isolated gate driver

Download the 2EDR9258X datasheet PDF. This datasheet also covers the 2EDR8259H variant, as both devices belong to the same dual-channel isolated gate driver family and are provided as variant models within a single manufacturer datasheet.

Description

3 Functional description 5 Block diagram

Features

  • 2-channel isolated gate driver for Si and SiC MOSFETs and GaN HEMTs power switches Table 1 Portfolio Part number UVLO EN/DIS Package.
  • Fast input-to-output propagation (38 ns) with excellent stability (+9/-5 ns).
  • Strong output stage: 5 A/9 A source/ sink.
  • Fast output clamping for VDDA/B < UVLO.
  • Fast UVLO recovery time (< 2 μs) 2EDR8259H 2EDR7259X 2EDR8259X 2EDR9259X 8 V DIS 4 V DIS 8 V DIS 15 V DIS DSO16-300mil DSO14-300mil DSO14-300mil DSO14-3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2EDR8259H-Infineon.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 2EDR9258X
Manufacturer Infineon
File Size 4.52 MB
Description Dual-channel isolated gate driver
Datasheet download datasheet 2EDR9258X Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2ED020I12-F Dual IGBT Driver eupec GmbH
2ED300C17 Dual IGBT Driver Eupec
2EDL1S Power Entry Module Tyco
2EDL1S Power Entry Module Filters corcom
2EDL1SC Power Entry Module Tyco

Other Datasheets by Infineon

Part Number Description
2EDR9259X Dual-channel isolated gate driver
2EDR6258X Dual-channel isolated gate driver
2EDR7259X Dual-channel isolated gate driver
2EDR8258X Dual-channel isolated gate driver
2EDR8259H Dual-channel isolated gate driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

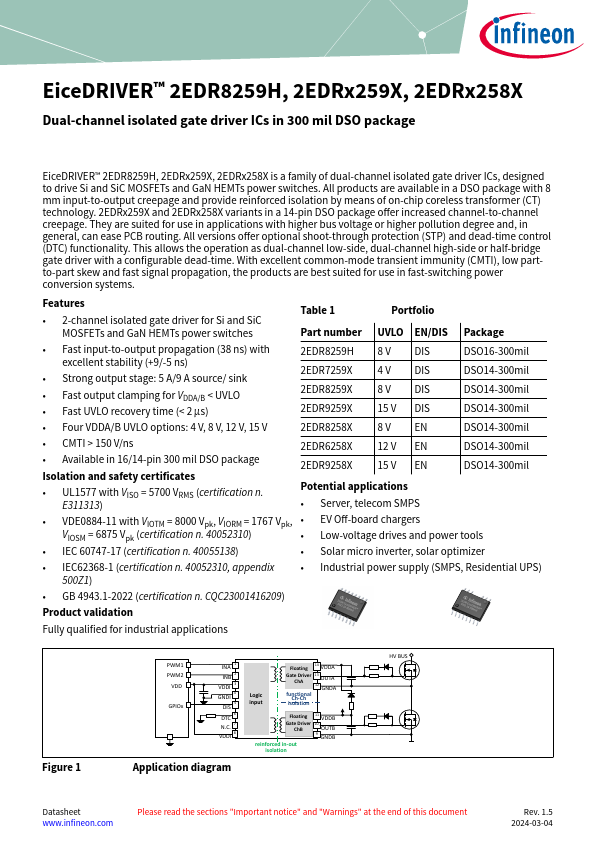

EiceDRIVER™ 2EDR8259H, 2EDRx259X, 2EDRx258X Dual-channel isolated gate driver ICs in 300 mil DSO package EiceDRIVER™ 2EDR8259H, 2EDRx259X, 2EDRx258X is a family of dual-channel isolated gate driver ICs, designed to drive Si and SiC MOSFETs and GaN HEMTs power switches. All products are available in a DSO package with 8 mm input-to-output creepage and provide reinforced isolation by means of on-chip coreless transformer (CT) technology. 2EDRx259X and 2EDRx258X variants in a 14-pin DSO package offer increased channel-to-channel creepage. They are suited for use in applications with higher bus voltage or higher pollution degree and, in general, can ease PCB routing. All versions offer optional shoot-through protection (STP) and dead-time control (DTC) functionality.
