2EDN7533F, 2EDN7534F - Dual-channel low-side 5A gate driver

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2EDN7533F, 2EDN7534F. Please refer to the document for exact specifications by model.

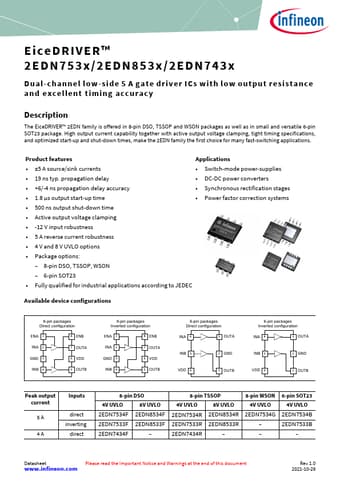

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2EDN7533F, 2EDN7534F
Manufacturer Infineon
File Size 1.32 MB
Description Dual-channel low-side 5A gate driver
Datasheet download datasheet 2EDN7534F-Infineon.pdf
Note This datasheet PDF includes multiple part numbers: 2EDN7533F, 2EDN7534F.
Please refer to the document for exact specifications by model.

2EDN7533F Product details

Description

The EiceDRIVER™ 2EDN family is offered in 8-pin DSO, TSSOP and WSON packages as well as in small and versatile 6-pin SOT23 package.
