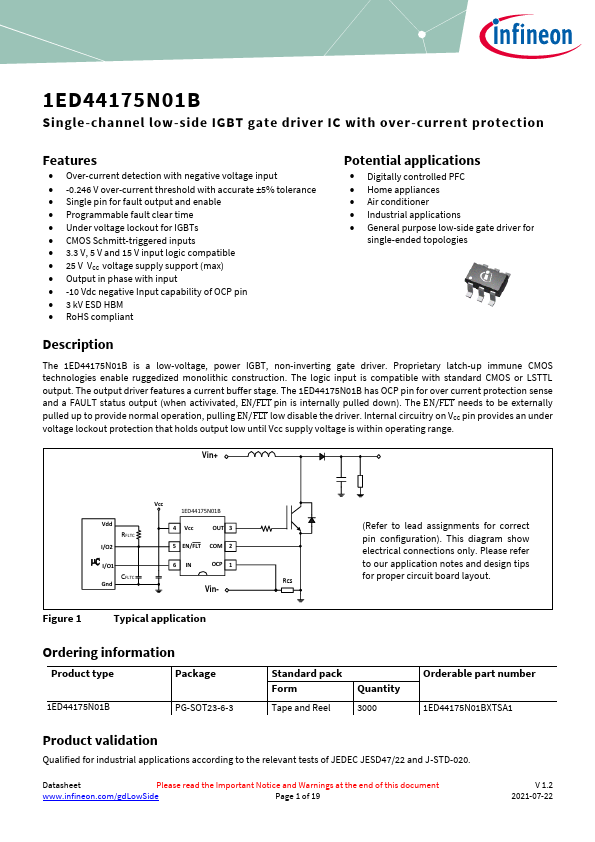

1ED44175N01B - Single-channel low-side IGBT gate driver

Description

The 1ED44175N01B is a low-voltage, power IGBT, non-inverting gate driver.

Proprietary latch-up immune CMOS technologies enable ruggedized monolithic construction.

The logic input is compatible with standard CMOS or LSTTL output.

Features

  • Over-current detection with negative voltage input.
  • -0.246 V over-current threshold with accurate ±5% tolerance.
  • Single pin for fault output and enable.
  • Programmable fault clear time.
  • Under voltage lockout for IGBTs.
  • CMOS Schmitt-triggered inputs.
  • 3.3 V, 5 V and 15 V input logic compatible.
  • 25 V VCC voltage supply support (max).
  • Output in phase with input.
  • -10 Vdc negative Input capability of OCP pin.
  • 3 kV ESD HBM.
  • RoHS compliant Pote.

📥 Download Datasheet

Datasheet Details

Part number 1ED44175N01B
Manufacturer Infineon
File Size 1.17 MB
Description Single-channel low-side IGBT gate driver
Datasheet download datasheet 1ED44175N01B Datasheet

📁 Similar Datasheet

Other Datasheets by Infineon

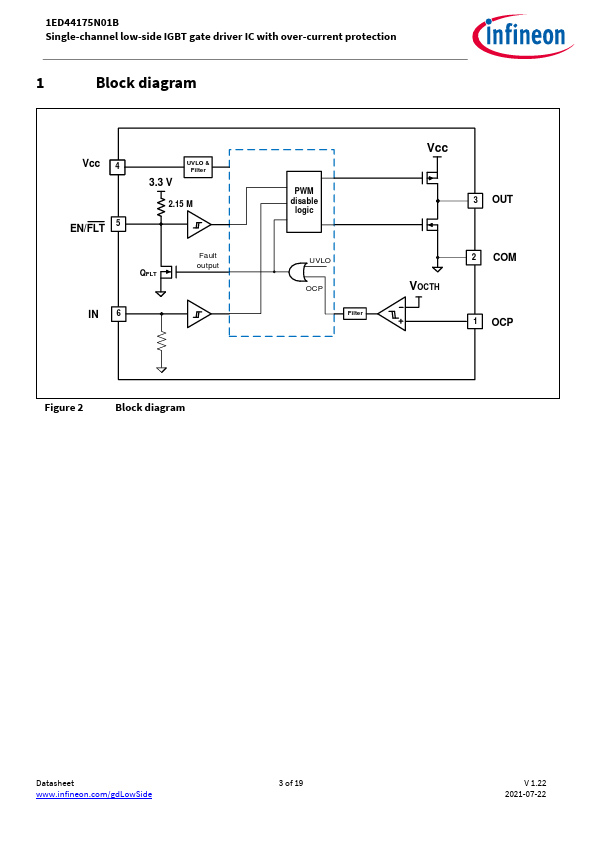

Full PDF Text Transcription

Click to expand full text
1ED44175N01B Single-channel low-side IGBT gate driver IC with over-current protection Features  Over-current detection with negative voltage input  -0.246 V over-current threshold with accurate ±5% tolerance  Single pin for fault output and enable  Programmable fault clear time  Under voltage lockout for IGBTs  CMOS Schmitt-triggered inputs  3.
