12CN10N - Power-Transistor

Infineon

The 12CN10N by Infineon is a Power-Transistor. Below is the official datasheet preview.

📥 Download Datasheet

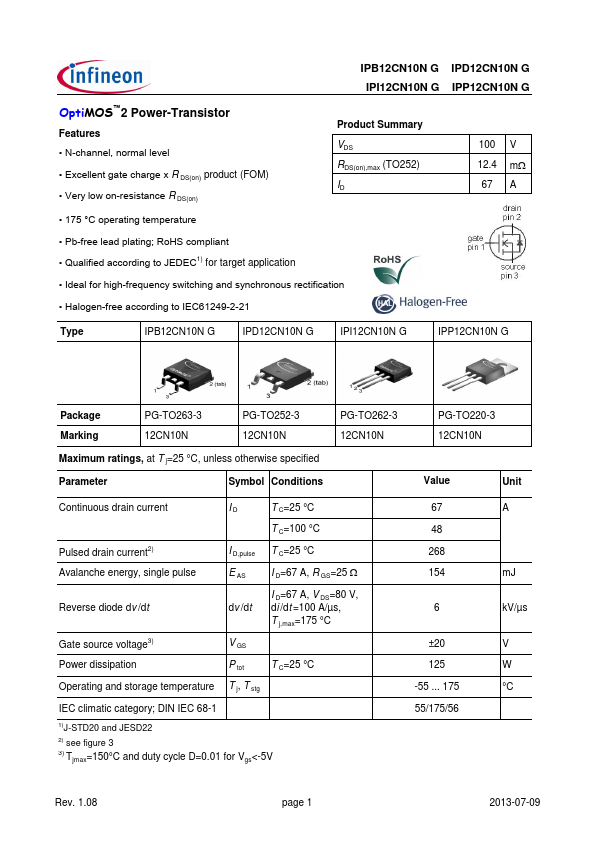

12CN10N Power-Transistor by Infineon - Datasheet Preview — Official preview page of the 12CN10N Power-Transistor datasheet (Infineon).

Datasheet Details

Part number	12CN10N
Manufacturer	Infineon
File Size	837.46 KB
Description	Power-Transistor
Datasheet	12CN10N-Infineon.pdf

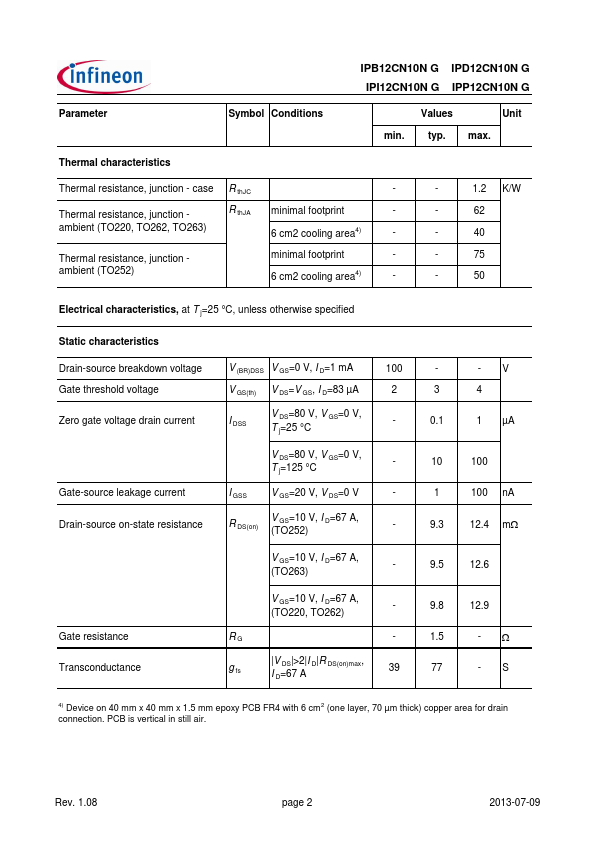

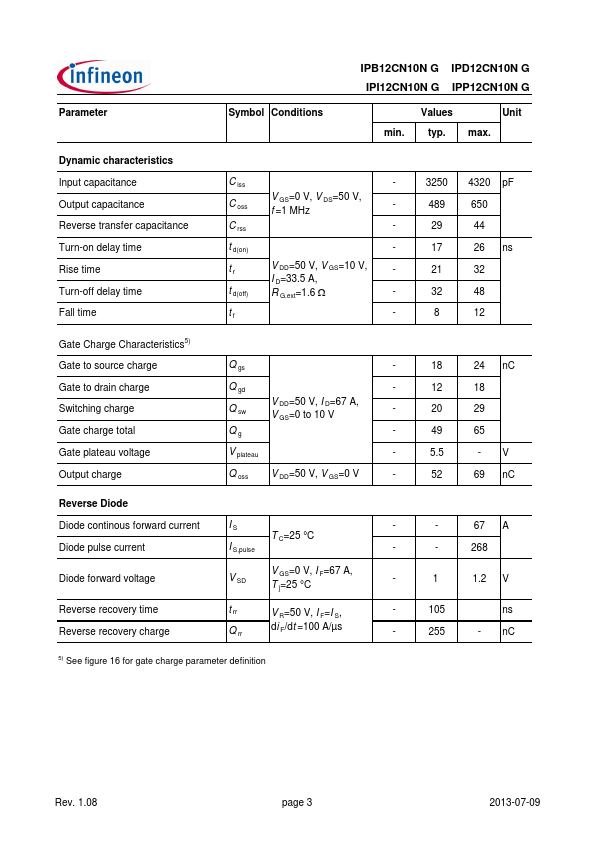

Additional preview pages of the 12CN10N datasheet.

12CN10N Product details

Features

N-channel, normal level.
Excellent gate charge x R DS(on) product (FOM).
Very low on-resistance R DS(on) Product Summary VDS RDS(on),max (TO252) ID 100 V 12.4 mW 67 A.
175 °C operating temperature.
Pb-free lead plating; RoHS compliant.
Qualified according to JEDEC1) for target.
