09A11200 Analog AMR/GMR Angle Sensors

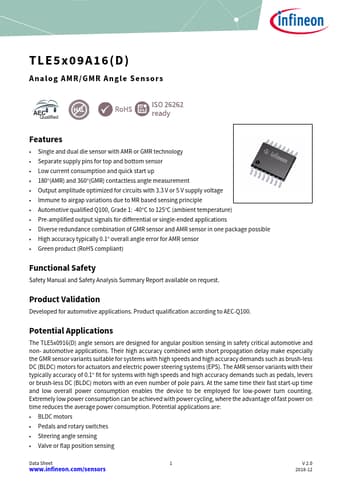

📥 Download Datasheet Datasheet Preview Page 1

Description

TLE5x09A16(D) Analog AMR/GMR Angle Sensors .
The TLE5x0916(D) are angle sensor with analog outputs.

📥 Download Datasheet

Preview of 09A11200 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Single and dual die sensor with AMR or GMR technology
* Separate supply pins for top and bottom sensor
* Low current consumption and quick start up
* 180°(AMR) and 360°(GMR) contactless angle measurement
* Output amplitude optimized for circuits with 3.3 V o

Applications

* Diverse redundance combination of GMR sensor and AMR sensor in one package possible
* High accuracy typically 0.1° overall angle error for AMR sensor
* Green product (RoHS compliant) Functional Safety Safety Manual and Safety Analysis Summary Report available on request.
