TLS203B0V50 Linear Voltage Post Regulator

TLS203B0V50 Description

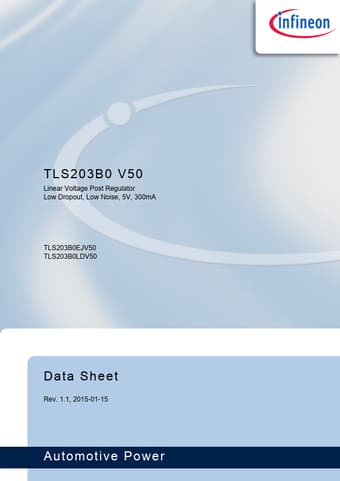

TLS203B0 V50 Linear Voltage Post Regulator Low Dropout, Low Noise, 5V, 300mA TLS203B0EJV50 TLS203B0LDV50 Data Sheet Rev.1.1, 2015-01-15 Automotive Po.
The electrical characteristics are specified within the conditions given in the Electrical Characteristics table.

TLS203B0V50 Features

* Low Noise down to 42 µVRMS (BW = 10 Hz to 100 kHz)
* 300 mA Current Capability
* Low Quiescent Current: 30 µA
* Wide Input Voltage Range up to 20 V
* Internal circuitry working down to 2.3 V
* 2.5% Output Voltage Accuracy (over full temperature and l

TLS203B0V50 Applications

* with large transient loads in order to limit peak voltage transients or when the regulator is applied in conjunction with a bypass capacitor. For more details please refer to “Application Information” on Page 19. 2 (DSO-8 EP) 4 (TSON-10) SENSE Output Sense. The SENSE pin is the input to the error

📥 Download Datasheet

Preview of TLS203B0V50 PDF
datasheet Preview Page 2 datasheet Preview Page 3
