STL81007x - 1550nm FP Laser

Download the STL81007x datasheet PDF (STL81007 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 1550nm fp laser.

Description

Differences between a Fabry-Perot and a DFB Laserdiode A conventional laser consists of an amplifying medium and two end mirrors.

The cavity is longer than one wavelength, and a standing wave is created.

Features

  • Designed for.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STL81007_InfineonTechnologies.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • STL81007x - 1550 nm Laser in Receptacle Package / Low Power (Siemens Semiconductor)
  • STL81004x - (STL81004x / STL81005x) 1550nm Laser (Siemens)
  • STL81005x - (STL81004x / STL81005x) 1550 nm Laser in Coaxial Package with SM-Pigtail / Low Power (Siemens Semiconductor)
  • STL80N3LLH6 - Power MOSFET (ST Microelectronics)
  • STL80N4LLF3 - N-CHANNEL POWER MOSFET (ST Microelectronics)
  • STL80N75F6 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STL80NF3LL - N-CHANNEL POWER MOSFET (ST Microelectronics)
  • STL85N6F3 - Power MOSFET (STMicroelectronics)
  • STL86N3LLH6AG - N-channel MOSFET (STMicroelectronics)
  • STL8DN10LF3 - Dual N-channel Power MOSFET (STMicroelectronics)
Other Datasheets by Infineon Technologies

    Full PDF Text Transcription

    Click to expand full text

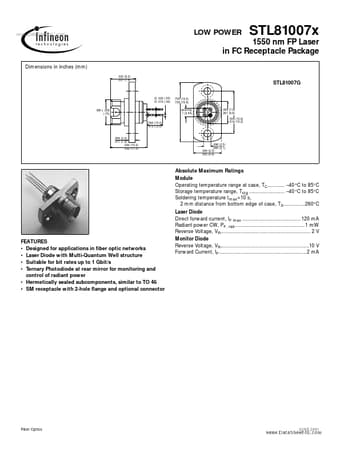

    www.DataSheet4U.com LOW POWER STL81007x 1550 nm FP Laser in FC Receptacle Package Dimensions in inches (mm) .322 (8.2) .307 (7.8) STL81007G Ø .022 (.55) Ø .016 (.40) .755 (19.2) .739 (18.8) 4 1 .283 (7.2) .267 (6.8) 3 .590 (15.0) .472 (12.0) 2 .534 (13.6) .519 (13.2) spacing .1 (2.54) M8 x .029 (.75) .086 (2.2) .071 (1.8) .590 (15.0) .432 (11.0) .098 (2.5) .083 (2.1) .365 (9.3) .350 (8.9) Absolute Maximum Ratings Module Operating temperature range at case, TC ............ –40°C to 85°C Storage temperature range, Tstg ......................... –40°C to 85°C Soldering temperature tmax=10 s, 2 mm distance from bottom edge of case, TS...............260°C Laser Diode Direct forward current, IF max ......................................... 120 mA Radiant power CW, PF, rad .............
