IRMT6115, IRMS6115 (IRMS6115 / IRMT6115) Infrared Data Transceiver

IRMT6115 Description

SIDE VIEW IRMS6115 TOP VIEW IRMT6115 C .116 L .106 (2.95) (2.70) 115 Kb/s Infrared Data Transceiver Dimensions in inches (mm) E D .157 (4.00) E .
With state of the art submicron BiCMOS circuitry, coupled with Infineon optoelectronic expertise, the IRMS6115 and IRMT6115 outperforms its closest riv.

IRMT6115 Features

* Compliant with IrDA Specification
* Data Rates 9.6 Kb/s to 115 Kb/s, usable up to 576 Kb/s
* Wide Range of Supply Voltage 2.4 to 5.5 V
* Standby Current 90 µA Typical
* Excellent Power Supply Noise Rejection
* Tri-State Receiver Output and TxD Disable

IRMT6115 Applications

* this is not

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRMT6115, IRMS6115. Please refer to the document for exact specifications by model.

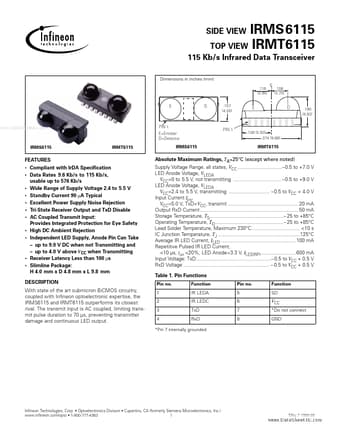

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRMT6115, IRMS6115
Manufacturer
Infineon ↗ Technologies
File Size
192.50 KB
Datasheet
IRMS6115_InfineonTechnologies.pdf
Description
(IRMS6115 / IRMT6115) Infrared Data Transceiver
Note
This datasheet PDF includes multiple part numbers: IRMT6115, IRMS6115.
Please refer to the document for exact specifications by model.
