09N03LA - Power Transistor

Infineon Technologies

📥 Download Datasheet

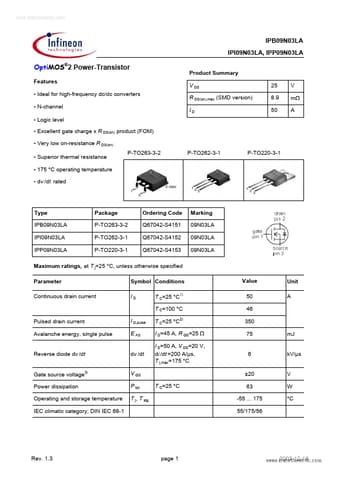

09N03LA Datasheet Preview — Preview of 09N03LA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	09N03LA
Manufacturer	Infineon ↗ Technologies
File Size	382.08 KB
Description	Power Transistor
Datasheet	09N03LA_InfineonTechnologies.pdf

09N03LA Product details

Description

and charts started herein.

Features

Ideal for high-frequency dc/dc converters.
N-channel.
Logic level.
Excellent gate charge x R DS(on) product (FOM).
Very low on-resistance R DS(on).
Superior thermal resistance.
175 °C operating temperature.
dv /dt rated P-TO263-3-2 Product Summary V DS R DS(on),max (SMD version) ID 25 8.9 50 V mΩ A P-TO262-3-1 P-TO220-3-1 Type IPB09N03LA IPI09N03LA IPP09N03LA Package P-TO263-3-2 P-TO262-3-1 P-TO220-3-1 Ordering Code Q.
