PBA31301, Bluetooth Radio Transceiver

and charts stated herein.

Infineon Technologies is an approved CECC manufacturer.

Information For further information on technology, delivery terms and conditions and prices please contact your nearest Infineon Technologies Office in Germany or our Infineon Technologies Representatives worldwide.

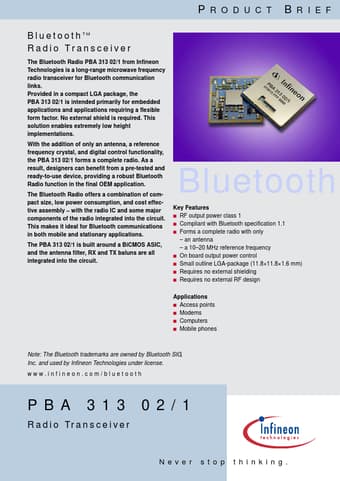

P R O D U C T B l u e t o o t h TM Radio Transceiver The Bluetooth Radio PBA 313 02/1 from Infineon Technologies is a long-range microwave frequency radio transceiver for Bluetooth communication links.

Provided in a compact LGA package, the PBA 313 02/1 is intended primarily for embedded applications and applications requiring a flexible form factor.

No external shield is required.

This solution enables extremely low height implementations.

With the addition of only an antenna, a reference frequ

PBA31301 Features

* RF output power class 1

* Compliant with Bluetooth specification 1.1

* Forms a complete radio with only

* an antenna

* a 10

* 20 MHz reference frequency

* On board output power control

* Small outline LGA-package (11.8×11.8×1.6 mm)

* Requires no extern
