BTS5440G Datasheet (Infineon Technologies AG) - Addendum for PCN-Datasheet 2004-018-A

BTS5440G, Addendum for PCN-Datasheet 2004-018-A

* N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and  technology.

diagnostic feedback, monolithically integrated in Smart SIPMOS * Providing embedded protective functions.

* Extern adjustable current limitation.

Application

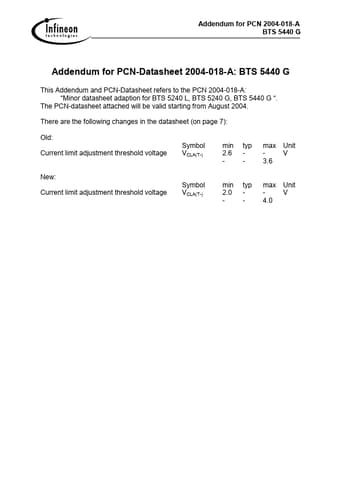

Addendum for PCN 2004-018-A BTS 5440 G Addendum for PCN-Datasheet 2004-018-A: BTS 5440 G This Addendum and PCN-Datasheet refers to the PCN 2004-018-A: “Minor datasheet adaption for BTS 5240 L, BTS 5240 G, BTS 5440 G “.

The PCN-datasheet attached will be valid starting from August 2004.

There are the following changes in the datasheet (on page 7): Old: Current limit adjustment threshold voltage New: Current limit adjustment threshold voltage Symbol VCLA(T-) min 2.0 typ max 4.0 Unit V Symbol VCLA

BTS5440G Features

* A I L(LIM) 7 40 VCLA(T-) VCLA(T+)
