BTS110 - TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)

Infineon Technologies AG

Datasheet Details

Part number	BTS110
Manufacturer	Infineon Technologies AG
File Size	560.59 KB
Description	TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
Datasheet	BTS110_InfineonTechnologiesAG.pdf

and charts stated herein.

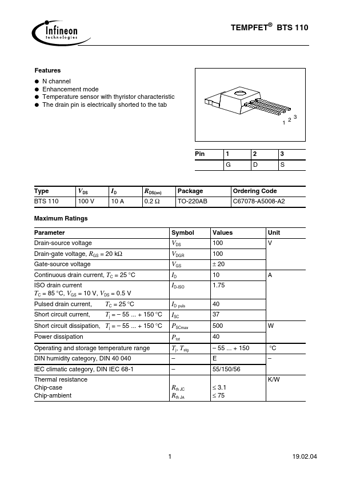

q q q q N channel Enhancement mode Temperature sensor with thyristor characteristic The drain pin is electrically shorted to the tab 3 1 2 Pin 1 G 2 D 3 S Type BTS 110 VDS 100 V ID 10 A RDS(on) 0.2 Ω Package TO-220AB Ordering Code C67078-A5008-A2 Maximum Ratings Parameter Drain-source voltage Drain-gate voltage, RGS = 20 kΩ Gate-source voltage Continuous drain current, TC = 25 °C ISO drain current TC = 85 °C, VGS = 10 V, VDS = 0.5 V Pulsed drain current, Short circuit current, Symbol.
