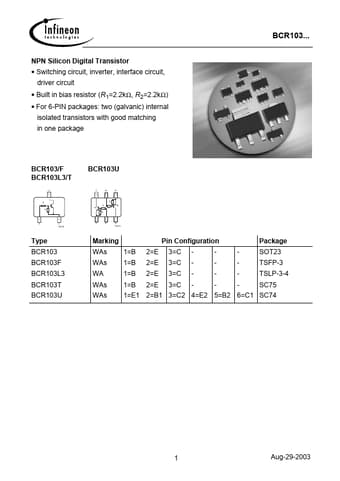

BCR103...
NPN Silicon Digital Transistor • Switching circuit, inverter, interface circuit, driver circuit • Built in bias resistor (R1=2.2kΩ, R2=2.2kΩ) • For 6-PIN packages: two (galvanic) internal isolated transistors with good matching in one package
BCR103/F BCR103L3/T
C 3
BCR103U
C1 6
B2 5
E2 4
R1
R1
R2 TR2 R1 R2 TR1
R2
1 B
2 E
EHA07184
1 E1
2 B1
3 C2
EHA07174
Type BCR103 BCR103F BCR103L3 BCR103T BCR103U
Marking WAs WAs WA WAs WAs 1=B 1=B 1=B 1=B 2=E 2=E 2=E 2=E
Pin Configuration 3=C 3=C 3=C 3=C -
Package SOT23 TSFP-3 TSLP-3-4 SC75
1=E1 2=B1 3=C2 4=E2 5=B2 6=C1 SC74
1
Aug-29-2003
BCR103...
