BAT15-099R - silicon RF Schottky diodes

The BAT15-099R by Infineon Technologies AG is a silicon RF Schottky diodes. Below is the official datasheet preview.

📥 Download Datasheet

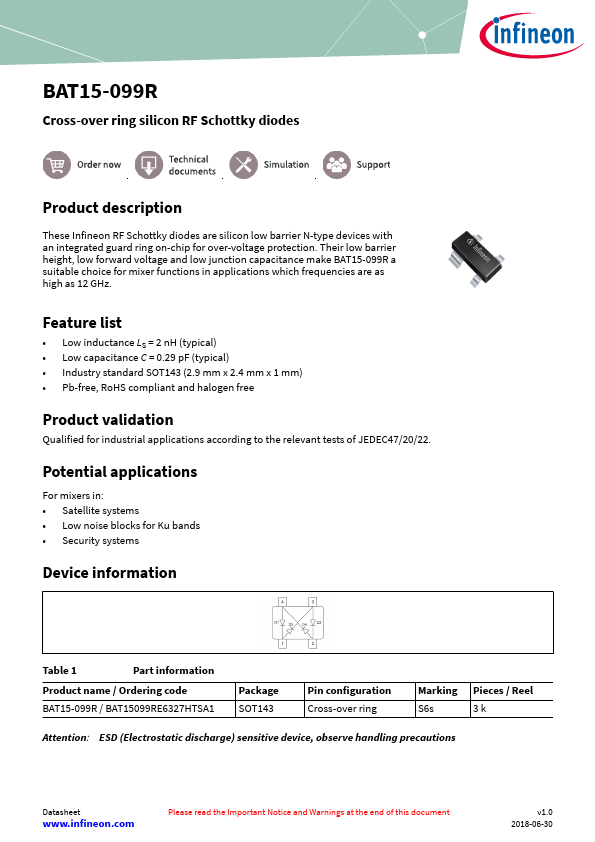

Official preview page of the BAT15-099R silicon RF Schottky diodes datasheet (Infineon Technologies AG).

Datasheet Details

Part number BAT15-099R
Manufacturer Infineon Technologies AG
File Size 285.90 KB
Description silicon RF Schottky diodes
Datasheet download datasheet BAT15-099R_InfineonTechnologiesAG.pdf

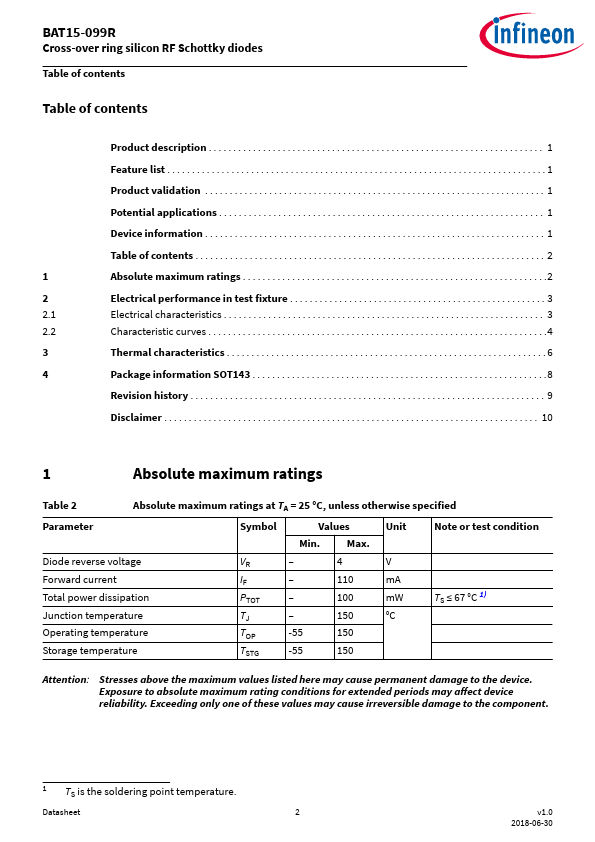

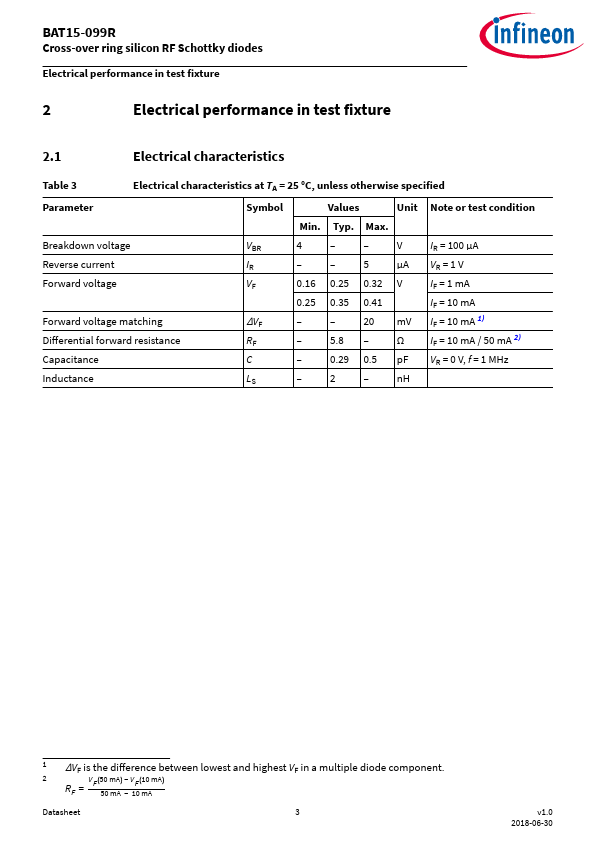

Additional preview pages of the BAT15-099R datasheet.

BAT15-099R Product details

Description

These Infineon RF Schottky diodes are silicon low barrier N-type devices with an integrated guard ring on-chip for over-voltage protection. Low inductance LS = 2 nH (typical) Low capacitance C = 0.29 pF (typical) Industry standard SOT143 (2.9 mm x 2.4 mm x 1 mm)
