3DD301B - Silicon Power Transistor

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 50V(Min) Collector-Emitter Saturation Voltage- : VCE(sat)= 2.0V(Max) @IC= 3A Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS

Designed for B/W TV vertical output applications.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
3DD3010A1 Silicon NPN Transistor Huajing Microelectronics
3DD3015A1 Silicon NPN Transistor Huajing Microelectronics
3DD3015A1-H Silicon NPN bipolar transistor Huajing Microelectronics
3DD3015A3 Silicon NPN Transistor Huajing Microelectronics
3DD3020A3 Silicon NPN Transistor Huajing Microelectronics

Other Datasheets by Inchange Semiconductor

Part Number Description
3DD301C Silicon Power Transistor
3DD301D Silicon Power Transistor
3DD303A Silicon Power Transistor
3DD303B Silicon Power Transistor
3DD303C Silicon Power Transistor

Full PDF Text Transcription

Click to expand full text

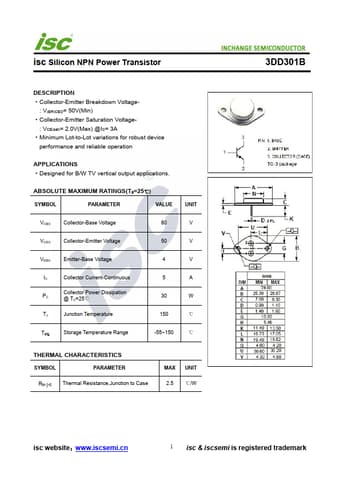

isc Silicon NPN Power Transistor DESCRIPTION ·Collector-Emitter Breakdown Voltage- : V(BR)CEO= 50V(Min) ·Collector-Emitter Saturation Voltage- : VCE(sat)= 2.0V(Max) @IC= 3A ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for B/W TV vertical output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 80 V VCEO Collector-Emitter Voltage 50 V VEBO Emitter-Base Voltage 4 V IC Collector Current-Continuous PC Collector Power Dissipation @ TC=25℃ TJ Junction Temperature 5 A 30 W 150 ℃ Tstg Storage Temperature Range -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance,Junction to Case MAX UNIT 2.
