MBR2060 - Schottky Barrier Rectifier

Features

  • Metal of silicon rectifier, majonty carrier conduction.
  • Guard ring for transient protection.
  • Low power loss high efficiency.
  • High Surge Capability,High Current Capability.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBR2060 High Power Schottky Barrier Rectifier Sooner
MBR2060 20 Amp Schottky Barrier Rectifier Micro Commercial Components
MBR2060 20A High Power Schottky Barrier Rectifiers CITC
MBR2060 20.0 AMP SCHOTTKY BARRIER RECTIFIERS Byte Sonic
MBR2060 SCHOTTKY BARRIER DIODE JILIN SINO

Other Datasheets by Inchange Semiconductor

Part Number Description
MBR2065CT Schottky Barrier Rectifier
MBR20100 Schottky Barrier Rectifier
MBR2030 Schottky Barrier Rectifier
MBR2030CT Schottky Barrier Rectifier
MBR2030CTL Schottky Barrier Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

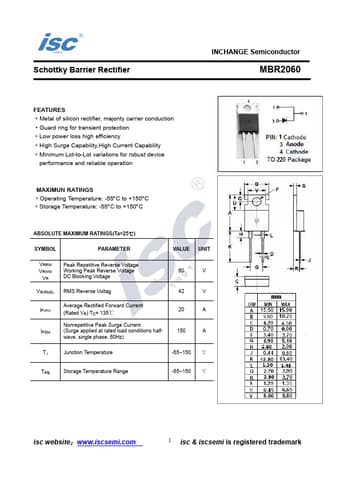

Schottky Barrier Rectifier INCHANGE Semiconductor MBR2060 FEATURES ·Metal of silicon rectifier, majonty carrier conduction ·Guard ring for transient protection ·Low power loss high efficiency ·High Surge Capability,High Current Capability ·Minimum Lot-to-Lot variations for robust device performance and reliable operation MAXIMUN RATINGS ·Operating Temperature: -55C to +150C ·Storage Temperature: -55C to +150C ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR VR(RMS) Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltag IF(AV) IFSM Average Rectified Forward Current (Rated VR) TC= 135℃ Nonrepetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60Hz) 60 42 20 150 V V A
