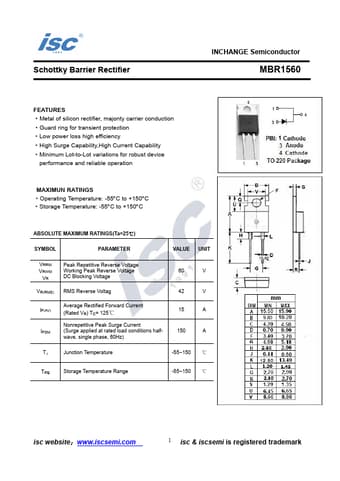

MBR1560 - Schottky Barrier Rectifier

Inchange Semiconductor

Datasheet Details

Part number	MBR1560
Manufacturer	Inchange Semiconductor
File Size	223.49 KB
Description	Schottky Barrier Rectifier
Datasheet	MBR1560-InchangeSemiconductor.pdf

Metal of silicon rectifier, majonty carrier conduction.
Guard ring for transient protection.
Low power loss high efficiency.
High Surge Capability,High Current Capability.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
