KSD5076 - Silicon NPN Power Transistor

Product Overview

Inchange Semiconductor

Datasheet Details

Part number	KSD5076
Manufacturer	Inchange Semiconductor
File Size	129.95 KB
Description	Silicon NPN Power Transistor
Datasheet	KSD5076 Datasheet
Additional preview pages of the KSD5076 datasheet.

Product details

Description

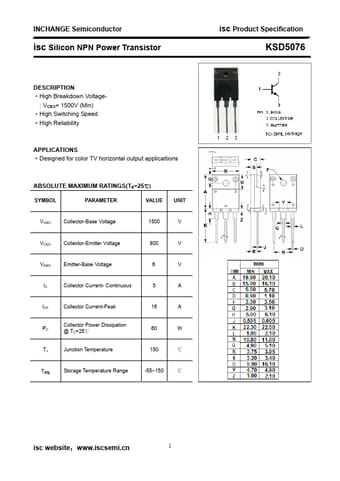

High Breakdown Voltage- : VCBO= 1500V (Min) High Switching Speed High Reliability APPLICATIONS Designed for color TV horizontal output applicaitions ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 6V IC Collector Current- Continuous 5 A ICP Collector Current-Peak PC Collector Power Dissipation @ TC=25℃ TJ Junction Temperature 16 A 60 W 150 ℃
