IRFS640A - N-Channel MOSFET Transistor

📥 Download Datasheet

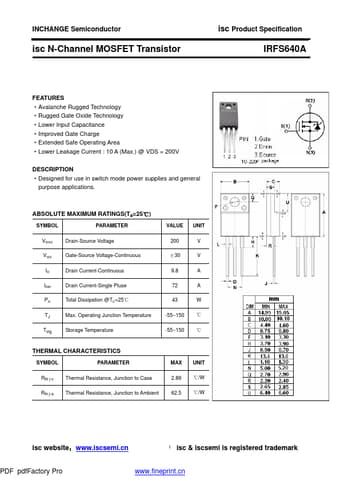

Preview of IRFS640A PDF
datasheet Preview Page 2

Datasheet Details

Part number IRFS640A
Manufacturer Inchange Semiconductor
File Size 53.29 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet IRFS640A-InchangeSemiconductor.pdf

IRFS640A Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max.Operating Junction Temperature Tstg Storage Temperature VALUE UNIT 200 ±30 V V 9.8 A 72 A 43 W -55~150 -55~150 ℃ ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Rth j-a Thermal Resis

Features
