IRFPC42R - N-Channel MOSFET Transistor

IRFPC42R Description

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification IRFPC42R .
Designed for use in switch mode power supplies and general purpose applications.

IRFPC42R Features

* Drain Current
* ID= 5.9A@ TC=25℃
* Drain Source Voltage- : VDSS= 600V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 1.6Ω(Max)

IRFPC42R Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 600 ±20 V V ID Drain Current-Continuous 5.9 A IDM Drain Current-Single Pluse 24 A PD Total Dissipation @TC=25℃ 150 W TJ Max. Operating Junction Temperature -55~

📥 Download Datasheet

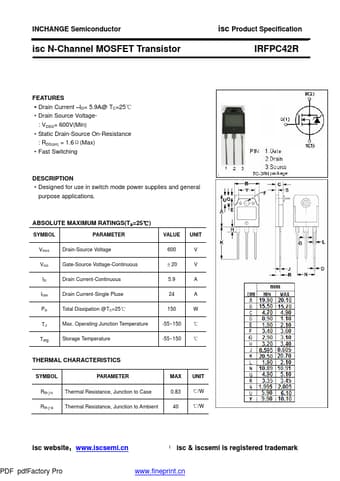

Preview of IRFPC42R PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRFPC42R
Manufacturer
Inchange Semiconductor
File Size
62.12 KB
Datasheet
IRFPC42R-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
