IRF840FI - N-Channel MOSFET Transistor

Description

purpose applications.

Features

  • Lower Input Capacitance.
  • Improved Gate Charge.
  • Extended Safe Operating Area.
  • Rugged Gate Oxide Technology.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRF840FI N-CHANNEL POWER MOS TRANSISTORS STMicroelectronics
IRF840 N-Channel Power MOSFET STMicroelectronics
IRF840 8A/ 500V/ 0.850 Ohm/ N-Channel Power MOSFET Intersil Corporation
IRF840 N-Channel Power MOSFET International Rectifier
IRF840 500V N-Channel MOSFET Fairchild Semiconductor

Other Datasheets by Inchange Semiconductor

Part Number Description
IRF840 N-Channel MOSFET Transistor
IRF841 N-Channel MOSFET Transistor
IRF841FI N-Channel MOSFET Transistor
IRF842 N-Channel MOSFET Transistor
IRF843 N-Channel MOSFET Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

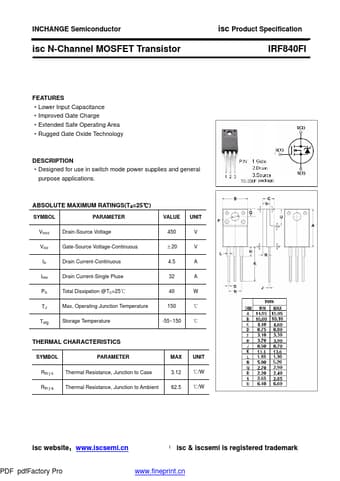

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification IRF840FI FEATURES ·Lower Input Capacitance ·Improved Gate Charge ·Extended Safe Operating Area ·Rugged Gate Oxide Technology DESCRIPTION ·Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 450 ±20 V V ID Drain Current-Continuous 4.5 A IDM Drain Current-Single Pluse 32 A PD Total Dissipation @TC=25℃ 40 W TJ Max. Operating Junction Temperature 150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Rth j-a Thermal Resistance, Junction to Case Thermal Resistance, Junction to Ambient MAX UNIT 3.12 ℃/W 62.
