IRF650A - N-Channel Mosfet Transistor

Inchange Semiconductor

📥 Download Datasheet

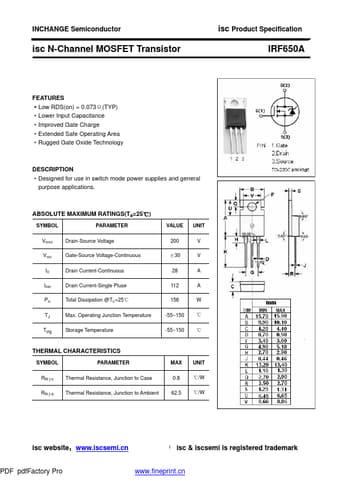

IRF650A Datasheet Preview — Preview of IRF650A PDF

Datasheet Details

Part number	IRF650A
Manufacturer	Inchange Semiconductor
File Size	61.40 KB
Description	N-Channel Mosfet Transistor
Datasheet	IRF650A-InchangeSemiconductor.pdf

IRF650A Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max.Operating Junction Temperature Tstg Storage Temperature VALUE UNIT 200 ±30 V V 28 A 112 A 156 W -55~150 -55~150 ℃ ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Rth j-a Thermal Resi

Features

Low RDS(on) = 0.073Ω(TYP).
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
Rugged Gate Oxide Technology.
